An object is at the center of curvature of a concave mirror....

Name: Problem 91, Chapter 16: Pearson Physics
Uploaded: 2023-02-23T10:28:09-08:00
Duration: 2 min 29 s
Channel: Narayan Hari
Description: An object is at the center of curvature of a concave mirror. (a) Is the resulting image real or virtual? (b) What is the location of the image? (c) Is the image upright or inverted? (d) What is the magnification of the image?

An object is at the center of curvature of a concave mirror. (a) Is the resulting image real or virtual? (b) What is the location of the image? (c) Is the image upright or inverted? (d) What is the magnification of the image?

Key Concepts

Magnification

Magnification is the ratio of the height of the image to that of the object, reflecting the size relationship between them. In the case of an object placed at the center of curvature of a concave mirror, the magnification is typically -1, indicating that the image is the same size as the object but inverted.

Image Orientation

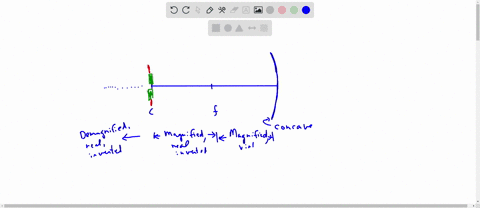

The orientation of an image in a concave mirror is determined by the object's position relative to the mirror's focal point. When the object is beyond the focal length, the resulting real image is inverted relative to the object.

Concave Mirror

A concave mirror is a spherical mirror that curves inward, focusing parallel light rays to a focal point. Its reflective properties depend on the object's placement relative to its focal length and center of curvature, allowing it to form real images when the object is placed outside the focal point.

Center of Curvature

The center of curvature is the center of the supporting sphere from which a spherical mirror is a segment. In concave mirrors, positioning an object at the center of curvature (which is twice the focal length) is significant because it results in an image with the same size as the object.

Real Image Formation

Real images result when converging light rays meet at a point after reflection. For concave mirrors, when the object is placed beyond the focal length, the image formed is real and can be projected onto a screen, as the reflected rays actually converge to form the image.
