An object is placed 12.0 cm in front of a lens of focal length 5.0 cm. Another lens of focal l

step 1 Solving party of this problem. So here object distance p1 is equal to 12 cm focal length f1 is e

An object is placed 12.0 cm in front of a lens of focal...

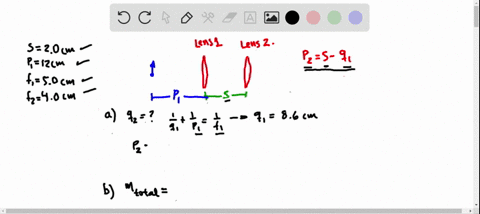

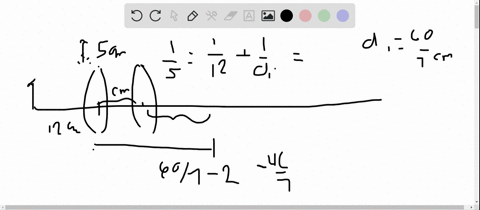

An object is placed $12.0 \mathrm{~cm}$ in front of a lens of focal length $5.0 \mathrm{~cm}$. Another lens of focal length $4.0 \mathrm{~cm}$ is placed $2.0 \mathrm{~cm}$ past the first lens. (a) Where is the final image? Is it real or virtual? (b) What is the overall magnification?

Key Concepts

Lens Formula

The lens formula, 1/f = 1/s + 1/s', is a fundamental equation in geometric optics that relates the focal length of a lens (f), the object distance (s), and the image distance (s'). It is used to determine where an image is formed by a lens given the position of an object.

Sign Conventions in Optics

Sign conventions are essential for correctly applying the lens formula. They determine the positive and negative directions for object distances, image distances, and focal lengths. Correct use of these conventions allows one to distinguish between real and virtual images, and to ascertain the orientation of the image produced.

Sequential Lens Systems

In systems with more than one lens, the image formed by the first lens becomes the object for the next lens. Understanding how to propagate the image positions and distances through multiple lenses is key to analyzing the final output of compound optical systems.

Magnification

Magnification is the ratio of the image size to the object size and is given by m = -s'/s for a thin lens. In systems with multiple lenses, the overall magnification is the product of the individual magnifications for each lens, indicating how much the final image is enlarged or reduced relative to the original object.

Real and Virtual Images

Real images are produced when light converges to a point and can be projected onto a screen, while virtual images occur when light appears to diverge from a point and cannot be projected. Recognizing the type of image formed is critical in the analysis of optical systems and is determined using the lens formula and sign conventions.
