An object is placed 20.0 cm to the left of a diverging lens (f= -8.00 cm) . A concave mirror (f=

step 1 So we have a lens, which is a diverging lens, and there's a mirror which is a concave mirror or

An object is placed 20.0 cm to the left of a diverging lens...

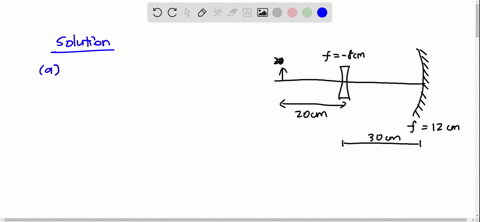

An object is placed $20.0 \mathrm{cm}$ to the left of a diverging lens $(f=$ $-8.00 \mathrm{cm}$$) .$ A concave mirror $(f=12.0 \mathrm{cm})$ is placed $30.0 \mathrm{cm}$ to the right of the lens. (a) Find the final image distance, measured relative to the mirror. (b) Is the final image real or virtual? (c) Is the final image upright or inverted with respect to the original object?

Key Concepts

Virtual and Real Images

This concept distinguishes between images that can be projected on a screen (real images) and those that cannot (virtual images). Real images result from converging light rays and are typically inverted, while virtual images are formed by the apparent divergence of light rays and are usually upright, a distinction that is critical in analyzing optical systems.

Sign Conventions in Geometric Optics

Sign conventions are rules used to assign positive or negative values to distances and focal lengths in optical calculations. They are fundamental for correctly applying the thin lens and mirror equations, especially when dealing with diverging elements (negative focal lengths) and determining the nature of images (virtual vs. real).

Thin Lens Equation

This concept involves the relationship between object distance, image distance, and focal length for a thin lens, given by the formula 1/f = 1/d? + 1/d?. It is used to determine where an image will form given a specific object location and lens focal length, and is crucial for analyzing systems involving lenses.

Mirror Equation

The mirror equation relates the object distance, image distance, and focal length for a spherical mirror. Similar to the thin lens equation, it is given by 1/f = 1/d? + 1/d?, and is used to determine the characteristics of images produced by mirrors, including their position and nature.

Image Formation in Multi-Element Optical Systems

When multiple optical elements such as lenses and mirrors are used together, the image formed by one element becomes the object for the next. Understanding how to chain these calculations is essential to determine the final image characteristics of the combined system.
