An object is placed in front of a convex mirror with a 25.0-cm radius of curvature. A virtual im

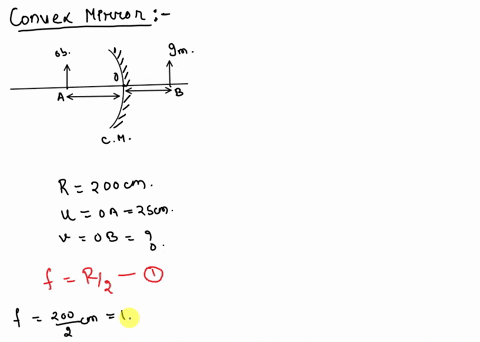

step 1 Okay, so here's a ray diagram of this scenario. We've got an object positioned in front of a con

An object is placed in front of a convex mirror with a...

Key Concepts

Mirror Equation

The mirror equation, 1/p + 1/q = 1/f, is fundamental when analyzing image formation in curved mirrors. It relates the object distance (p), the image distance (q), and the focal length (f) of the mirror, permitting the determination of one quantity when the other two are known. In systematic problems involving mirrors, this equation is used to connect the locations of the object and the image.

Magnification

Magnification in mirror problems is defined as the ratio of the image height to the object height, and it is related to distances by the formula m = -q/p. This concept indicates how the size of the image compares to the original object, and it also carries information regarding the orientation of the image, such as inversion or uprightness, which is particularly useful when analyzing cases with virtual images in convex mirrors.

Focal Length of a Convex Mirror

For spherical mirrors, the focal length is directly related to the radius of curvature by the equation f = R/2. In the case of convex mirrors, the focal length is conventionally taken as positive or negative depending on the sign convention being used, but the key point is that the focal length is a fixed property derived from the mirror's geometry. This parameter is crucial in applying the mirror equation for determining the positions of objects and images.

Virtual Image Formation

In convex mirrors, the images formed are always virtual, meaning they cannot be projected on a screen because the light rays do not actually converge. Instead, the rays appear to diverge from a common point behind the mirror. Virtual images in convex mirrors are typically reduced in size relative to the object and are upright, which is an important concept when considering magnification and realistic imaging behavior.

Ray Diagrams

Ray diagrams are visual tools that help illustrate the paths taken by light as they reflect off mirrors. In the context of convex mirrors, drawing the appropriate rays—such as one parallel to the principal axis that appears to diverge from the focal point, and one directed toward the center of curvature—helps clarify the positions of the object and the resulting virtual image. Such diagrams are essential for understanding and verifying the mathematical results obtained using the mirror equation and magnification formulas.
