Question
An opening in a floor is covered by a $1 \times 1.2-\mathrm{m}$ sheet of plywood with a mass of $18 \mathrm{kg}$. The sheet is hinged at $A$ and $B$ and is maintained in a position slightly above the floor by a small block $C$. Determine the vertical component of the reaction ( $a$ ) at $A,(b)$ at $B$, (c) at $C$.
Step 1
The weight $W$ is given by the mass $m$ times the acceleration due to gravity $g$. Here, $m = 18 \, \text{kg}$ and $g = 9.81 \, \text{m/s}^2$. So, $W = m \cdot g = 18 \, \text{kg} \cdot 9.81 \, \text{m/s}^2 = 176.58 \, \text{N}$. Show more…
Show all steps
Your feedback will help us improve your experience
Vidhi Bhatt and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An opening in a floor is covered by a 1 × 1.2-m sheet of plywood of mass 30 kg. The sheet is hinged at A and B and is maintained in a position slightly above the floor by a small block C. Determine the vertical component of the reaction at A, B, and C. (Round the final answers to two decimal places.) The vertical component of the reaction at A is ____ N. The vertical component of the reaction at B is ____ N. The vertical component of the reaction at C is ____ N.

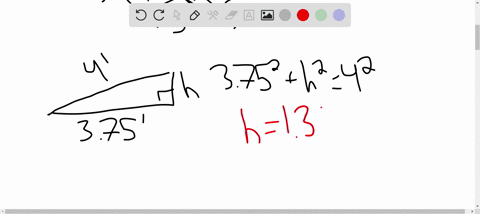

A $4 \times 8$ -ft sheet of plywood weighing 34 lb has been temporarily placed among three pipe supports. The lower edge of the sheet rests on small collars at $A$ and $B$ and its upper edge leans against pipe $C .$ Neglecting friction at all surfaces, determine the reactions at $A, B,$ and $C .$
Equilibrium of Rigid Bodies
Equilibrium in Three Dimensions
Block $A$ has a mass of $2 \mathrm{~kg}$ and slides into an open ended box $B$ with a velocity of $2 \mathrm{~m} / \mathrm{s}$. If the box $B$ has a mass of $3 \mathrm{~kg}$ and rests on top of a plate $P$ that has a mass of $3 \mathrm{~kg}$, determine the distance the plate moves after it stops sliding on the floor. Also, how long is it after impact before all motion ceases? The coefficient of kinetic friction between the box and the plate is $\mu_{k}=0.2,$ and between the plate and the floor $\mu_{k}^{\prime}=0.1 .$ Also, the coefficient of static friction between the plate and the floor is $\mu_{s}^{\prime}=0.12$.
