An organ pipe is made to play a low note at 27.5 Hz, the same as the lowest note on a piano. Ass

step 1 Hi friends this is the problem based for formation of standing waves in organ pipe. Here it is g

An organ pipe is made to play a low note at 27.5 Hz, the...

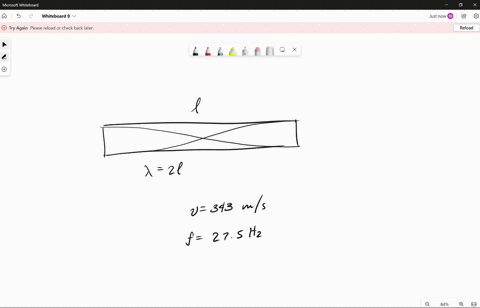

An organ pipe is made to play a low note at $27.5 \mathrm{Hz}$, the same as the lowest note on a piano. Assuming a sound speed of $343 \mathrm{m} / \mathrm{s},$ what length open-open pipe is needed? What length open-closed pipe would suffice?

Key Concepts

Standing Waves

Standing waves are patterns of vibration that result from the interference of waves moving in opposite directions. In the context of pipes, they dictate the locations of nodes (points of no displacement) and antinodes (points of maximum displacement), which in turn determine the resonant frequencies that the pipe can support.

Boundary Conditions in Pipes

The boundary conditions at the ends of a pipe are critical in establishing the standing wave pattern. In an open pipe, the air at the end vibrates freely, creating an antinode, whereas at a closed end, the air is constrained, forming a node. These conditions affect the wavelengths that can resonate within the pipe.

Resonant Frequencies and Harmonics

Resonant frequencies are the specific frequencies at which standing waves form in the pipe. The fundamental frequency, or first harmonic, represents the simplest mode of vibration. In pipes, higher harmonics appear at multiples of the fundamental frequency (for open-open pipes) or odd multiples of the fundamental (for open-closed pipes).

Relationship Between Frequency, Wavelength, and Sound Speed

The relationship between frequency (f), wavelength (?), and the speed of sound (v) is given by the formula ? = v/f. This formula is integral to determining the wavelengths corresponding to specific frequencies, which is essential when calculating the dimensions necessary for resonance in pipes.

Open-Open Pipe Model

In an open-open pipe, both ends allow free movement of air, producing antinodes at the ends. The fundamental resonant mode occurs when the length of the pipe is equal to half the wavelength of the sound (L = ?/2). Consequently, the fundamental frequency and pipe length are related by L = v/(2f).

Open-Closed Pipe Model

In an open-closed pipe, one end is free (open) and the other is fixed (closed), leading to an antinode at the open end and a node at the closed end. The fundamental mode in this case requires that the length of the pipe is a quarter of the sound's wavelength (L = ?/4), establishing the relationship L = v/(4f) between the pipe length, the speed of sound, and the frequency.
