An uncharged spherical conductor $S$ of radius $R$ has two spherical cavities $A$ and $B$ of radii $a$ and $b$, respectively as shown below. Two point charges $+q_{a}$ and $+q_{b}$ are placed at the center of the two cavities by using nonconducting supports. In addition, a point charge $+q_{0}$ is placed outside at a distance $r$ from the center of the sphere. (a) Draw approximate charge distributions in the metal although metal sphere has no net charge. (b) Draw electric field lines. Draw enough lines to represent all distinctly different places.

An uncharged spherical conductor $S$ of radius $R$ has two spherical cavities $A$ and $B$ of radii $a$ and $b$, respectively as shown below. Two point charges $+q_{a}$ and $+q_{b}$ are
placed at the center of the two cavities by using nonconducting supports. In addition, a point charge $+q_{0}$ is placed outside at a distance $r$ from the center of the sphere.
(a) Draw approximate charge distributions in the metal although metal sphere has no net charge. (b) Draw electric field lines. Draw enough lines to represent all distinctly different places.

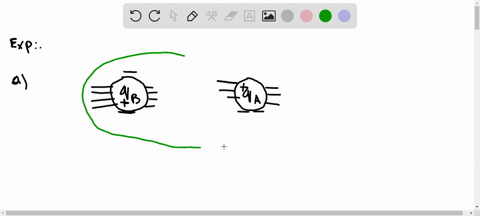

Key Concepts

Electric Field Visualization

Drawing electric field lines is a method to visually represent the magnitude and direction of the electric fields in space. For systems with conductors and cavities, field lines indicate how the external fields interact with induced charges, show the paths towards and away from charges, and reveal regions—like within the conductor—where the field is zero. This visualization aids in understanding complex charge configurations.

Electrostatic Shielding

Electrostatic shielding is the phenomenon whereby a conductor, thanks to its free charges, can block external electric fields from influencing the region inside. In the scenario of a conductor with cavities, the outer induced charges rearrange themselves to cancel any external field within the conductor's interior. This ensures that even if there are external charges, the fields inside the cavities are determined solely by the charges within them.

Gauss's Law

Gauss's Law is a fundamental principle relating the electric flux through a closed surface to the charge enclosed by that surface. It is especially useful in problems involving symmetrical charge distributions, such as spherical conductors with cavities, to determine the resulting electric fields both inside the cavities and in the external region. The law helps in justifying why induced charges take specific values on the conductor's surfaces.

Electrostatic Induction

This concept refers to the process where a nearby charged object causes a redistribution of charges within a conductor, even if the conductor itself has no net charge. In the context of conductors with cavities, induced charges appear on the surfaces in such a way that the total electric field within the conductor is cancelled, and specific charge distributions are created on the boundary surfaces of the cavities.

Conductors in Electrostatic Equilibrium

When a conductor is in electrostatic equilibrium, there is no net motion of charge within it. This condition requires that the electric field inside the conducting material be zero, and as a result, any excess or induced charge resides only on its outer surface or the surfaces of cavities. Understanding this concept is crucial in analyzing how charges distribute themselves to maintain a null field in the bulk of the conductor.

Charge Distribution in Cavities

In a conductor with cavities, if a charge is introduced within a cavity, the inner surface of the cavity will develop an induced charge that exactly cancels the enclosed charge’s field within the conductor’s material. This results in an equal and opposite charge on the cavity surface, and if the overall conductor is uncharged, an equal amount of charge appears on its outer surface. This phenomenon ensures that the interior of the solid metal remains field-free.
