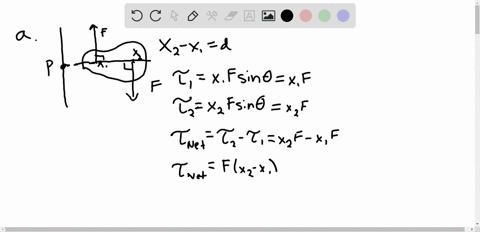

Any pair of equal and opposite forces acting on the same object is called a couple. Consider the couple in part (a) of the figure. The rotation axis is perpendicular to the page through point $P .$ (a) Show that the magnitude of the net torque is equal to $F d,$ where $d$ is the distance between the lines of action. Because the distance $d$ is independent of the location of the rotation axis, this shows that the torque is the same for any rotation axis. (b) Repeat for the couple in part (b) of the figure. Show that the torque magnitude is still $F d$ if $d$ is the perpendicular distance between the lines of action of the forces.

Key Concepts

Couple (Force Couple)

A couple refers to a pair of equal and opposite forces whose lines of action are parallel but do not coincide. This configuration creates a pure rotational effect on a body without producing any net translational force. The concept of a couple is fundamental in mechanics for analyzing rotational effects in structures and mechanical systems.

Torque

Torque is a measure of the tendency of a force to cause an object to rotate about an axis or pivot. In the context of a couple, the net torque is calculated as the product of the magnitude of one of the forces and the perpendicular distance (moment arm) between their lines of action. This property highlights that the rotational influence is constant regardless of the chosen rotational axis.

Moment Arm (Lever Arm)

The moment arm, or lever arm, is the shortest (perpendicular) distance between the axis of rotation and the line of action of the force. In the analysis of a couple, this distance is crucial because the torque produced is directly proportional to the moment arm. This concept plays an essential role in determining the efficiency of force application in producing rotation.

Independence from the Axis of Rotation

A key feature of a couple is that the net torque produced is independent of the location chosen for the rotation axis. Because the torque is solely determined by the force magnitude and the constant moment arm between the forces, the resulting rotation remains the same regardless of the pivot point, demonstrating the invariance property of couples in rotational dynamics.
