Applying the positive end of a battery to the p -side and...

Applying the positive end of a battery to the $p$ -side and the negative end to the $n$ -side of a $p-n$ junction, the measured current is $8.76 \times 10^{-1} \mathrm{A}$. Reversing this polarity give a reverse saturation current of $4.41 \times 10^{-8} \mathrm{A} .$ What is the temperature if the bias voltage is $1.2 \mathrm{V} ?$

Key Concepts

Diode Equation

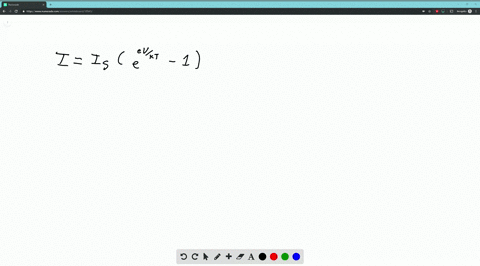

The diode equation, expressed as I = I_s (exp(eV/(kT)) - 1), relates the current through a semiconductor diode to the applied voltage, thermal energy, and reverse saturation current. It is essential for understanding how the current exponentially increases with applied voltage in forward bias and remains very small in reverse bias.

Forward Bias

Forward bias occurs when the positive terminal of a voltage source is connected to the p-side of a p-n junction and the negative terminal to the n-side. This arrangement reduces the barrier potential at the junction, allowing a significant current to flow as carriers overcome the potential barrier.

Reverse Saturation Current

The reverse saturation current is the small leakage current that flows through a p-n junction in reverse bias. It arises from the thermal generation of minority carriers and is highly temperature dependent, playing a crucial role in characterizing the diode's reverse bias behavior.

Thermal Voltage and Temperature Dependency

Thermal voltage, defined as V_T = kT/e, where k is Boltzmann's constant and T is the absolute temperature, connects the thermal energy of carriers in a semiconductor to its electrical characteristics. The exponential dependence of diode current on voltage includes temperature through this term, making the temperature a critical parameter in analyzing and designing semiconductor devices.
