Arm torque A horizontally outstretched arm supports a weight...

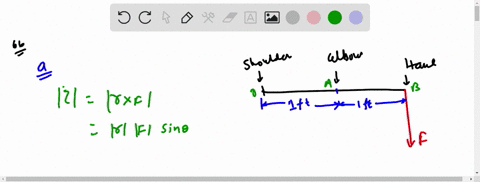

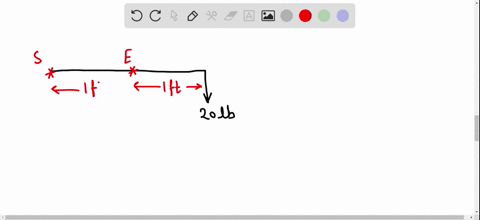

Arm torque A horizontally outstretched arm supports a weight of $20 \mathrm{lb}$ in a hand (see figure). If the distance from the shoulder to the elbow is $1 \mathrm{ft}$ and the distance from the elbow to the hand is 1 fit, find the magnitude and describe the direction of the torque about (a) the shoulder and (b) the elbow. (The units of torque in this case are $\mathrm{ft}-\mathrm{Ib} .$ ) CANT COPY THE GRAPH

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Torque

Torque is a measure of the rotational effect of a force applied to an object around a pivot point. It is calculated as the product of the force and the perpendicular distance (lever arm) from the pivot to the line of action of the force, and it determines how effectively the force can cause rotational motion.

Lever Arm

The lever arm is the perpendicular distance from the axis of rotation (or pivot point) to the line along which the force is applied. This distance directly influences the magnitude of the resulting torque; a longer lever arm results in a greater torque for the same amount of force.

Pivot Point

A pivot point is the fixed point around which an object rotates. In torque problems, such as with the shoulder or elbow in an arm, the location of the pivot point affects both the magnitude and direction of the applied torque, because the distance from the force application point to each pivot is different.

Direction of Torque

The direction of torque refers to whether the force causes rotation in a clockwise or counterclockwise manner around the pivot point. This is determined by the direction in which the force is applied relative to the pivot, and standard sign conventions or the right-hand rule are used to establish the rotational direction.
