Assume a transparent rod of diameter d=2.00 μm has an index of refraction of 1.36 Determine the

step 1 The angle of acceptance is given by sine theta a, theta a is the angle of acceptance, equals N1

Assume a transparent rod of diameter d=2.00 μm has an index...

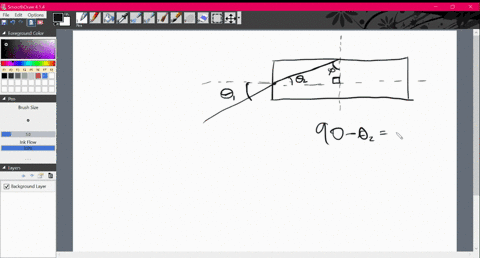

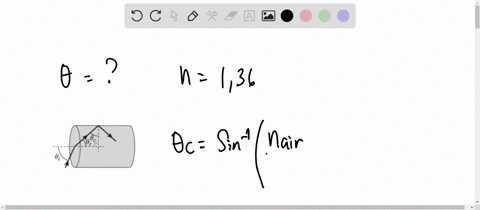

Assume a transparent rod of diameter $d=2.00 \mu \mathrm{m}$ has an index of refraction of 1.36 Determine the maximum angle $\theta$ for which the light rays incident on the end of the rod in Figure P35.39 are subject to total internal reflection along the walls of the rod. Your answer defines the size of the cone of acceptance for the rod.

Key Concepts

Refractive Index

The refractive index is a measure of how much light bends, or refracts, when entering a material, and it indicates the speed of light in that material relative to the speed of light in a vacuum. In problems involving total internal reflection and optical guidance, the refractive index is used to determine the critical angle and, consequently, the acceptance angle. Changes in the refractive index can significantly alter the behavior of light at the interface between different media.

Acceptance Angle

The acceptance angle is the maximum angle relative to the optical axis at which light can enter a medium and still undergo total internal reflection along its walls. It essentially defines the cone of acceptance, describing the range of incidence angles for which light will be successfully transmitted along the rod or fiber. The acceptance angle is directly influenced by the critical angle and is a key parameter in the design of optical waveguides.

Total Internal Reflection

Total internal reflection is an optical phenomenon that occurs when light traveling in a medium with a higher refractive index strikes the boundary with a medium of lower refractive index at an angle greater than a certain threshold, known as the critical angle. At this angle, instead of refracting out of the medium, all of the light is reflected back inside, thereby confining it within the medium. This principle is essential in guiding light through optical fibers and rods.

Critical Angle

The critical angle is defined as the minimum angle of incidence, measured in the denser medium, above which total internal reflection takes place. It can be calculated using the relationship sin(critical angle) = n?/n?, where n? is the refractive index of the denser medium and n? is that of the less dense medium. This concept is fundamental in determining the conditions necessary for light to be confined within a medium like a fiber or rod.
