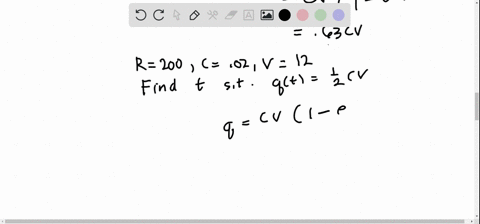

Assume in the circuit of Figure 8 that R=200 Ω, C=0.02 F and V=12 V . How many seconds does it t

step 1 So we have the differential equation is R dq over d t plus 1 over c times k equal to v v v where

Assume in the circuit of Figure 8 that R=200 Ω, C=0.02 F and...

Assume in the circuit of Figure 8 that $R=200 \Omega, C=0.02 \mathrm{F}$ and $V=12 \mathrm{V}$ . How many seconds does it take for the charge on the capacitor plates to reach half of its limiting value?

Key Concepts

Exponential Charging Equation

The exponential charging equation describes how the voltage across or the charge on the capacitor increases over time in an RC circuit. This behavior is typically modeled by the equation Q(t) = Q_final (1 - e^(-t/?)), where Q_final is the limiting or maximum charge. This equation is central to understanding the dynamics of capacitor charging in various electronic applications.

Natural Logarithm

The natural logarithm function, often denoted as ln, appears in the analysis of exponential processes, such as the charging of a capacitor. It is used to solve equations that involve exponential terms, allowing us to determine specific time values—like the time required for the capacitor to reach half of its maximum charge—by isolating the variable representing time.

RC Circuits

RC circuits are electrical circuits that include both resistors (R) and capacitors (C). They are fundamental in analyzing transient responses in circuits, specifically describing how voltages and currents change over time when a capacitor is either charging or discharging. These circuits are widely used in filtering, timing, and signal processing applications.

Time Constant

The time constant, represented by the symbol ? (tau) and calculated as the product of resistance (R) and capacitance (C), quantifies the rate at which a capacitor charges or discharges in an RC circuit. It indicates the time required for the system to reach approximately 63.2% of its final value during a charging process or to decay to about 36.8% during discharging.
