Assume laminar boundary-layer flow to estimate the drag on...

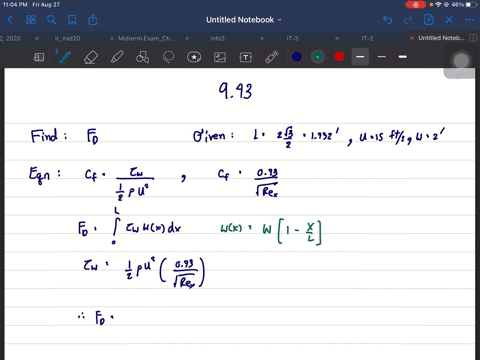

Assume laminar boundary-layer flow to estimate the drag on the plate shown when it is placed parallel to a $15 \mathrm{ft} / \mathrm{s}$ flow, except that the base rather than the tip faces the flow. Would you expect this to be large than, the same as, or lower than the drag for Problem $9.44 ?$

Key Concepts

Drag on Flat Plates

Drag on a flat plate in a fluid flow primarily originates from viscous shear stresses within the boundary layer. The magnitude of this drag depends on how the boundary layer develops along the plate and the distribution of pressure differences, both of which are influenced by the geometry and orientation of the plate relative to the flow.

Laminar Boundary Layer

A laminar boundary layer is a thin region adjacent to a solid surface where fluid flow is smooth and orderly, characterized by layers of fluid sliding past one another with minimal mixing. Its thickness and behavior directly influence the shear stress and, consequently, the drag exerted on the surface, making it a key factor when estimating drag in aerodynamic problems.

Effect of Plate Orientation on Boundary Layer Development

The orientation of the plate—whether the tip or the base faces the flow—affects the initial conditions of the boundary layer development. When the plate's base faces the flow, the flow encounters a larger, more blunt surface area first, potentially leading to a thicker initial boundary layer and higher drag compared to when a finer tip is exposed to the flow.

Comparative Analysis in Drag Estimation

Comparing different orientations involves analyzing how the change in the leading edge geometry alters the boundary layer growth and shear stress distribution. In problems like these, differences in local acceleration, flow separation, and stagnation regions all contribute to variations in overall drag, highlighting the need to consider geometric effects in drag predictions.
