Assume that the circuit in Figure 21-16 has L equal to 0.60 H, R equal to 250 Ω, and C equal t

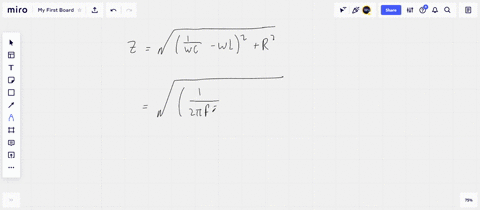

step 1 For this problem on the topic of AC circuits, for the given LRC circuit, we have an inductance L

Assume that the circuit in Figure 21-16 has L equal to...

Assume that the circuit in $\underline{\text { Figure }} 21-16$ has $L$ equal to $0.60 \mathrm{H}, R$ equal to $250 \Omega$, and $C$ equal to $3.5 \mu \mathrm{F}$. At a frequency of $60 \mathrm{~Hz}$, what are the impedance and the phase angle between the current and voltage?

Key Concepts

Series RLC Circuits

A series RLC circuit includes a resistor, an inductor, and a capacitor connected in a single path. Analyzing such a circuit involves computing the individual contributions of resistance and reactance to the overall impedance, as well as determining the resultant phase angle, which together dictate the circuit’s response to an alternating current signal.

Phase Angle in AC Circuits

The phase angle represents the difference in phase between the voltage across an AC circuit and the current flowing through it. It arises from the interplay between resistive and reactive components, with the angle being determined by the arctan of the ratio of the net reactance (difference between inductive and capacitive reactances) to the resistance.

Impedance in AC Circuits

Impedance is the overall opposition that an AC circuit presents to the flow of current. It is a complex quantity combining both resistance (which dissipates energy) and reactance (which stores and releases energy), and it dictates how voltage and current relate in amplitude and phase.

Inductive and Capacitive Reactance

Reactance refers to the frequency-dependent part of the circuit's opposition due to inductors and capacitors. Inductive reactance increases with frequency and is calculated as 2?fL, while capacitive reactance decreases with frequency and is calculated as 1/(2?fC). These reactances are crucial for determining the circuit’s behavior under AC conditions.
