Assume that the internal diameter of the Geiger-Mueller tube...

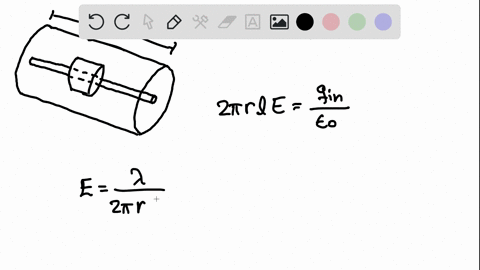

Assume that the internal diameter of the Geiger-Mueller tube described in Problem 20.74 is $2.50 \mathrm{cm}$ and that the wire along the axis has a diameter of $0.200 \mathrm{mm}$. The dielectric strength of the gas between the central wire and the cylinder is $1.20 \times 10^{6} \mathrm{V} / \mathrm{m}$. Use the result of Problem 20.74 to calculate the maximum potential difference that can be applied between the wire and the cylinder before breakdown occurs in the gas.

Key Concepts

Electrical Breakdown

Electrical breakdown occurs when an insulating medium is subjected to an electric field stronger than its dielectric strength, causing it to suddenly become conductive. This process is fundamental in understanding the limits of voltage application in systems, since once breakdown happens, uncontrolled current flow can lead to device failure or damage.

Cylindrical Electric Fields

In cylindrical geometries, such as coaxial configurations, the electric field is not uniform and typically varies inversely with the radial distance from the center conductor. This means that the highest intensity of the field is found near the inner conductor, making it a key consideration when determining the maximum potential difference that can be applied before breakdown occurs.

Dielectric Strength

Dielectric strength is the measure of an insulating material's ability to withstand an electric field without experiencing breakdown. It is defined as the maximum electric field a material can endure before it starts to conduct electricity, leading to a failure of the insulator's properties. This concept is critical in determining the safe operating conditions for devices where high voltages are involved.

Potential Difference Calculation in Cylindrical Geometry

The calculation of potential difference in a cylindrical configuration involves integrating the radially varying electric field between two concentric cylinders. This approach requires understanding the logarithmic relationship between the inner and outer radii, which is essential for determining voltage thresholds in systems where geometry plays a crucial role in defining field distribution and breakdown limits.
