Assume the reading on a dB meter inserted into a circuit showed zero. What would this indicate. If the dB meter reading was -10 , what would this reading indicate?
Step 1
A dB meter measures the ratio of two power levels or voltage levels, expressed in decibels. Show more…
Show all steps
Your feedback will help us improve your experience
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Recommended Videos
7. A microwave transmitter typically requires a +8 dBm audio level to drive the input fully. If a +10 dBm level is measured, what is the actual voltage level measured? Assume a 600 Ohm system. (2.45 V) 9. Convert the following powers to their dBm equivalents: (a) p = 1 W (30 dBm) (b) p = 0.001 W (0 dBm) (c) p = 0.0001 W (-10 dBm) (d) p = 25 mW (-16 dBm) 13. A 2.15 V rms signal is measured across a 600-ohm load. Convert this measured value to its dBm equivalent. (8.86 dBm (600)) 14. A 2.15 V rms signal is measured across a 50-ohm load. Convert this measured value to its dBm(50) equivalent. (19.66 dBm(50)) 29. Provide two other names for Johnson noise and calculate the noise voltage output of a 1-Mohm resistor at 27°C over a 1-MHz frequency range. (128.7 mV) 30. The noise produced by a resistor is to be amplified by a noiseless amplifier having a voltage gain of 75 and a bandwidth of 100 kHz. A sensitive meter at the output reads 240 mV rms. Assuming operation at 37°C, calculate the resistor's resistance. If the bandwidth were cut to 25 kHz, determine the expected output meter reading. (5.985 kohm, 120 mV) 32. Determine the noise current for the resistor in Problem 29. What happens to this noise current? 11. An unmodulated carrier is 300 V p-p. Calculate %m when its maximum p-p value reaches 400, 500, and 600 V. (33.3%, 66.7%, 100%) 15. A 100 V carrier is modulated by a 1 kHz sine wave. Determine the side-frequency amplitudes when m = 0.75. (37.5 V) 16. A 1 MHz, 40 V peak carrier is modulated by a 5 kHz intelligence signal so that m = 0.7. This AM signal is fed to a 50-ohm antenna. Calculate the power of each spectral component fed to the antenna. (Pc = 16 W, Pusb = Plsb = 1.96 W)

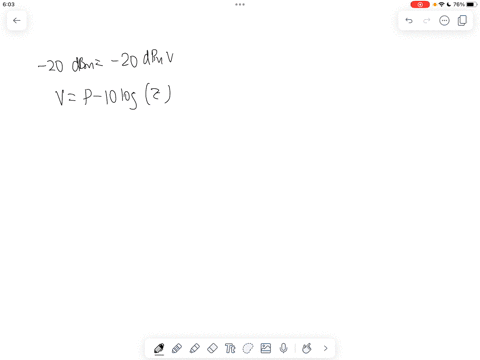

A 50Ω signal generator is attached to a signal measurer whose input impedance is 25Ω. The dial on the signal generator indicates that it is putting out a level of ―20 dBm. Determine the voltage at the input to the signal measurer in dBμV.
