Assuming the upward reaction of the ground on beam AB to be...

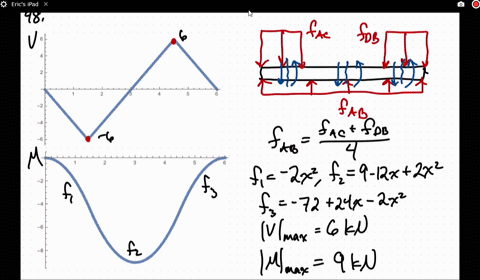

Assuming the upward reaction of the ground on beam AB
to be uniformly distributed, (a) draw the shear and bending-moment
diagrams, (b) determine the maximum absolute values of the shear
and bending moment.

Key Concepts

Bending Moment Diagram (BMD)

The Bending Moment Diagram is a graphical representation of the bending moment distribution along the beam. It is obtained by integrating the shear force diagram or applying equilibrium equations to determine how moments vary along the beam's span. The maximum bending moment indicates the point of greatest potential for bending failure, making its identification crucial in structural design.

Determination of Maximum Values

Identifying the maximum absolute shear force and bending moment is critical in structural analysis because these values help engineers design beams that can safely withstand the highest internal forces. This involves analyzing the SFD and BMD to locate the peaks and applying differentiation or integration methods to determine the precise points of maximum stress.

Distributed Loads

This concept refers to loads spread evenly across a structural element’s length rather than being concentrated at a single point. In the context of beams, a uniformly distributed load (UDL) creates a continuous load per unit length that impacts the internal shear forces and bending moments, and it requires integration over the beam’s span to determine its effects.

Shear Force Diagram (SFD)

A Shear Force Diagram visually represents the variation of internal shear forces along the length of a beam. It is constructed by plotting values of resultant transverse forces acting on the sections of the beam, which are derived from the equilibrium of forces. This diagram helps in identifying abrupt changes or discontinuities that indicate the presence of applied loads or support reactions.
