At a given instant, the body has a linear momentum 𝐋=m 𝐯G and an angular momentum 𝐇G-IG ωcompute

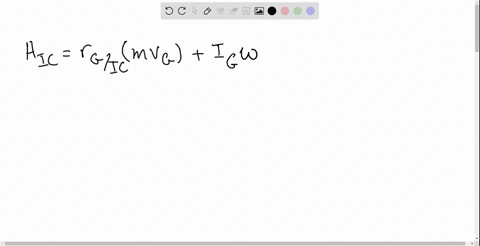

step 1 in this question the angular momentum h i c equals r g ic multiply mvg plus i g omega but let's

At a given instant, the body has a linear momentum 𝐋=m 𝐯G...

At a given instant, the body has a linear momentum $\mathbf{L}=m \mathbf{v}_{G}$ and an angular momentum $\mathbf{H}_{G}-I_{G} \omega$ computed about its mass center. Show that the angular momentum of the body computed about the instantaneous center of zero velocity IC can be expressed as $\mathbf{H}_{l C}=I_{I C} \omega$, where $I_{I C}$ represents the body's moment of inertia computed about the instantaneous axis of zero velocity. As shown, the $I C$ is located at a distance $r_{G / K}$ away from the mass center $G$.

Key Concepts

Parallel Axis Theorem

The parallel axis theorem is a useful tool for relating the moment of inertia of a body about an axis passing through its center of mass to a parallel axis located a distance away. This theorem is essential when transferring calculations of moments of inertia from the center of mass to another point, such as the instantaneous center of zero velocity, and it allows for the incorporation of the offset distance between these axes.

Instantaneous Center of Zero Velocity

The instantaneous center of zero velocity, often used in planar kinematics, is the point in a moving body that, at a particular instant, has zero velocity. This concept simplifies the analysis of the body's rotation by allowing the motion to be described as a pure rotation about this center. It is especially useful in relating the angular momentum computed about this point to the body’s moment of inertia and angular velocity.

Angular Momentum

Angular momentum is a measure of the rotational motion of a body about a point or axis. It accounts for both the rotational inertia of the body and its angular velocity. When computed about different points, such as the body’s center of mass or another instantaneous center, the contributions from the body's mass distribution and the related moment arms play crucial roles in determining the overall angular momentum.

Moment of Inertia

The moment of inertia is a property of a body that quantifies its resistance to angular acceleration about a given axis. It depends on the mass distribution relative to the axis of rotation. In problems where the axis of rotation changes, such as when shifting from the center of mass to an instantaneous center of zero velocity, the moment of inertia must be recalculated using the proper mass distribution and the associated distance from the new axis.
