At the bottom of a loop in the vertical ( r-θ) plane at an altitude of 400 m, the airplane P has

step 1 So here in this question the equation for radial and tangential acceleration of an airplane in a

At the bottom of a loop in the vertical ( r-θ) plane at an...

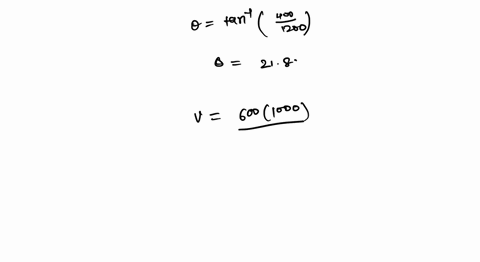

At the bottom of a loop in the vertical ( $r-\theta$ ) plane at an altitude of $400 \mathrm{m}$, the airplane $P$ has a horizontal velocity of $600 \mathrm{km} / \mathrm{h}$ and no horizontal acceleration. The radius of curvature of the loop is $1200 \mathrm{m}$ For the radar tracking at $O,$ determine the recorded values of $\ddot{r}$ and $\ddot{\theta}$ for this instant.

Key Concepts

Polar Coordinate Kinematics

Polar coordinate kinematics involves describing an object's motion using a radial distance and an angle rather than traditional Cartesian coordinates. This framework requires the use of time derivatives of both the radial coordinate (r) and the angular coordinate (?) to determine velocity and acceleration. The acceleration in polar coordinates is decomposed into radial (r¨ - r?²) and angular (r?¨ + 2r???) components, which are fundamental to analyzing motion along curved paths.

Radial and Angular Components of Acceleration

In polar coordinate systems, acceleration is split into two components: the radial component, which affects changes in the distance from the origin, and the angular component, which is responsible for changes in the direction of the motion. These components are derived from the time derivatives of the radial and angular variables, and they are essential in understanding the dynamics of an object moving along a curved path.

Centripetal Acceleration and Radius of Curvature

Centripetal acceleration is a key concept in circular and curved motion, representing the rate at which an object’s velocity vector is changing direction as it follows a path with a given radius. It is defined by the formula v²/R, where v is the speed of the object and R is the radius of curvature. This concept links the instantaneous speed of the object with the geometry of its path and is directly related to the radial acceleration component in polar coordinates.

Reference Frame Transformation for Radar Tracking

When tracking an object from a fixed point, such as with radar, the motion of the object must be transformed from its own trajectory coordinates to the observer’s polar coordinate framework. This involves expressing the object’s horizontal and vertical motion in terms of radial and angular derivatives relative to the observer’s position, which is crucial for extracting the correct acceleration components from measurements.
