At the instant illustrated, car B has a speed of 30 km / h and car A has a speed of 40 km / h. D

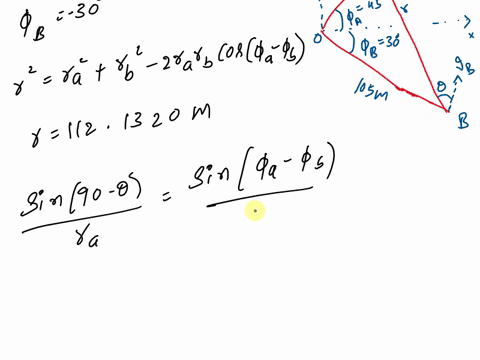

step 1 Here we have to determine the values of R dot and theta dot for this instance. So let us first w

At the instant illustrated, car B has a speed of 30 km / h...

At the instant illustrated, car $B$ has a speed of $30 \mathrm{km} / \mathrm{h}$ and car $A$ has a speed of $40 \mathrm{km} / \mathrm{h}$. Determine the values of $\dot{r}$ and $\dot{\theta}$ for this instant where $r$ and $\theta$ are measured relative to a longitudinal axis fixed to car $B$ as indicated in the figure.

Key Concepts

Frame of Reference

A frame of reference is an essential concept in mechanics that defines the coordinates or perspective from which motion is observed and measured. Choosing a frame of reference that is attached to one of the moving objects can simplify the analysis by reducing the problem to one where one object is observed to be stationary, thereby allowing for easier computation of relative velocities and other kinematic quantities.

Velocity Decomposition

Velocity decomposition involves breaking down a velocity vector into its constituent components, which, in polar coordinates, are the radial velocity (the rate at which the distance from the reference point changes) and the tangential or angular component (related to the rate of change of the angle). This separation is key in analyzing how an object’s speed affects both its direct movement away from or towards a point and its rotational movement around that point.

Polar Coordinates Kinematics

Polar coordinates provide a framework for describing motion using a distance from a reference point (the radial component) and an angle relative to a fixed direction (the angular component). In polar kinematics, the rate of change of the radial distance and the rate of change of the angular variable are central to characterizing the motion. This method is particularly useful in problems where the motion naturally involves rotation or where the geometry of the situation is more conveniently described in terms of distances and angles rather than horizontal and vertical displacements.

Relative Motion

Relative motion is the study of how the position, velocity, and acceleration of one object are perceived from the viewpoint of another moving object. By analyzing the difference between the velocity vectors of two bodies, we can simplify the problem by considering one body to be at rest and examining the motion of the other relative to it. This concept is fundamental in dynamics as it allows us to understand and predict the behavior of objects that are in motion relative to one another.
