Atwood's machine. In the Atwood's machine shown in Fig....

Atwood's machine. In the Atwood's machine shown in Fig. $3.17$, find the tension in the string $0 A$ supporting the pulley. Show that the vector sum of the three forces-this tension, $m_{1} g$, and $m_{2} g-$ is equal to the rate of change of the vertical momentum.

Key Concepts

Vector Sum of Forces

The concept of the vector sum of forces involves adding forces with both magnitudes and directions to determine the net force acting on an object. In dynamics problems, correctly summing these forces enables the application of Newton's second law, ensuring that the motion (or rate of change of momentum) of the system is accurately described.

Free-Body Diagram

A free-body diagram is a graphical illustration used to visualize the forces acting on a single object. By isolating a body and representing all the forces acting on it as vectors, one can systematically apply Newton's laws to determine the resulting acceleration or internal tensions, which is particularly useful in complex systems like pulley arrangements.

Tension in a Rope

Tension refers to the force transmitted through a rope, cable, or string when it is pulled tight by forces acting from opposite ends. In systems like pulley setups, understanding tension is critical because it determines how forces are distributed among the connected masses and supports, affecting the acceleration and overall dynamics of the system.

Newton's Second Law of Motion

Newton's Second Law states that the net force acting on a body is equal to the rate of change of its momentum. In problems involving multiple forces and moving components, this law connects the sum of all vector forces to the acceleration (or momentum change) of the system, providing a framework for analyzing the motion of both individual elements and the overall system.

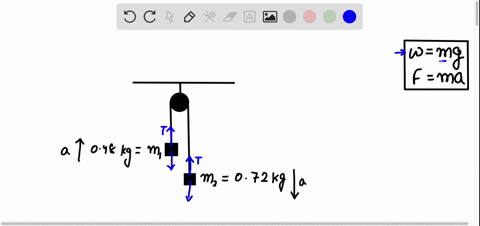

Atwood's Machine

Atwood's Machine is a classic physics apparatus used to study the dynamics of connected masses under gravity. It illustrates basic concepts of acceleration, tension, and net force, and serves as an effective example for applying Newton's laws to systems where multiple bodies interact through pulleys and ropes.
