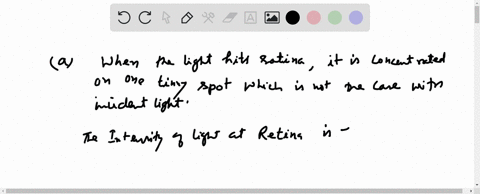

$\because$ BIO Predict/Calculate Consider the physical situation illustrated in Figure $25-41 .\left($ a) Is $E_{\mathrm{rms}}$ in the incident laser beam greater \right. than, less than, or the same as $E_{\mathrm{rms}}$ where the beam hits the retina? Explain. (b) If the intensity of the beam at the retina is equal to the damage threshold, $1.0 \times 10^{-2} \mathrm{W} / \mathrm{cm}^{2},$ what is the value of $E_{\mathrm{ms}}$ at that location? (c) If the diameter of the spot on the retina is reduced by a factor of $2,$ by what factor does the intensity increase? By what factor does $E_{\mathrm{rms}}$ increase?

$\because$ BIO Predict/Calculate Consider the physical situation illustrated in Figure $25-41 .\left($ a) Is $E_{\mathrm{rms}}$ in the incident laser beam greater \right.
than, less than, or the same as $E_{\mathrm{rms}}$ where the beam hits the retina?
Explain. (b) If the intensity of the beam at the retina is equal to
the damage threshold, $1.0 \times 10^{-2} \mathrm{W} / \mathrm{cm}^{2},$ what is the value of
$E_{\mathrm{ms}}$ at that location? (c) If the diameter of the spot on the retina is
reduced by a factor of $2,$ by what factor does the intensity increase?
By what factor does $E_{\mathrm{rms}}$ increase?

Key Concepts

Focusing and Spot Size Effects

When a beam is focused, its cross-sectional area decreases, leading to an increase in intensity if the total power remains the same. Since intensity is defined as power per unit area, reducing the spot size (e.g., halving the diameter reduces the area by a factor of four) causes the intensity to increase by the reciprocal of the area change factor. Given that the rms electric field is proportional to the square root of the intensity, any increase in intensity due to focusing will augment E_rms by the square root of the intensity multiplication factor.

Root Mean Square (RMS) Value

The rms value is a statistical measure used to represent the effective or equivalent constant value of a varying quantity such as an alternating electric field. For electromagnetic waves, E_rms quantifies the effective amplitude of the oscillating electric field and is essential when relating the physical field strength to measurable quantities like energy and intensity.

Electric Field and Intensity Relationship

This concept explains the mathematical relationship between the intensity of an electromagnetic wave and its electric field amplitude. In free space, the intensity (I) of a plane electromagnetic wave is related to the root mean square (rms) electric field (E_rms) through the expression I = (1/2) ?? c E_rms², where ?? is the permittivity of free space and c is the speed of light. This relationship allows one to calculate the effective electric field from a known intensity, as the intensity is directly proportional to the square of the rms electric field.
