BIO Elephants Under Pressure. An elephant can swim or walk with its chest several meters underwater while the animal breathes through its trunk, which remains above the water surface and acts like a snorkel. The elephant's tissues are at an increased pressure due to the surrounding water, but the lungs are at atmospheric pressure because they are connected to the air through the trunk. The figure shows the gauge pressures in an elephant's lungs and abdomen when the elephant's chest is submerged to a particular depth in a lake. In this situation, the elephant's diaphragm, which separates the lungs from the abdomen, must sustain the difference in pressure between the lungs and the abdomen. The diaphragm of an elephant is typically $3.0 \mathrm{~cm}$ thick and $120 \mathrm{~cm}$ in diameter. (See "Why Doesn't the Elephant Have a Pleural Space?" by John B. West, Physiology, Vol. $17: 47-50,$ April $1,2002 .)$

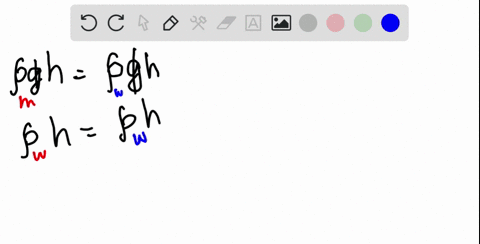

12.89 For the situation shown, the tissues in the elephant's abdomen are at a gauge pressure of $150 \mathrm{~mm} \mathrm{Hg} .$ This pressure corresponds to what distance below the surface of a lake? (a) $1.5 \mathrm{~m} ;$ (b) $2.0 \mathrm{~m} ;$ (c) $3.0 \mathrm{~m}$;
(d) $15 \mathrm{~m}$.
