BIO Triceps and darts Your upper arm is horizontal and your...

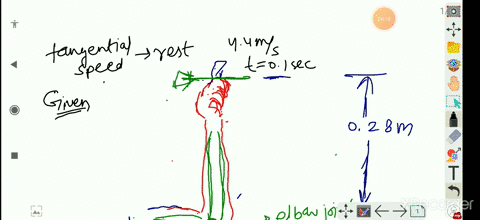

BIO Triceps and darts Your upper arm is horizontal and your forearm is vertical with a $0.010-\mathrm{kg}$ dart in your hand (Figure $\mathbf{P} 8.65$ ). When your triceps muscle contracts, your forearm initially swings forward with a rotational acceleration of 35 rad $/ s^{2}$ . Determine the force that your triceps muscle exerts on your forearm during this initial part of the throw. The rotational inertia of your forearm is 0.12 $\mathrm{kg} \cdot \mathrm{m}^{2}$ and the dart is 0.38 $\mathrm{m}$ from your elbow joint. You triceps muscle attaches 0.03 $\mathrm{m}$ from your elbow joint.

BIO Triceps and darts Your upper arm is horizontal and your forearm is vertical with a $0.010-\mathrm{kg}$ dart in your hand (Figure $\mathbf{P} 8.65$ ). When your triceps muscle contracts,
your forearm initially swings forward with a rotational acceleration of
35 rad $/ s^{2}$ . Determine the force that your triceps muscle exerts on your forearm during this initial part of the throw. The rotational inertia of your forearm is 0.12 $\mathrm{kg} \cdot \mathrm{m}^{2}$ and the dart is 0.38 $\mathrm{m}$ from your elbow joint. You triceps muscle attaches 0.03 $\mathrm{m}$ from your elbow joint.

Key Concepts

Rotational Dynamics

Rotational dynamics is the study of the motion of bodies that rotate about an axis. It involves analyzing how torques change the rotational motion of an object based on properties such as angular acceleration and moment of inertia. In problems like this, the relationship between net torque, moment of inertia, and angular acceleration (? = I?) is used to predict how forces cause rotational motion.

Torque

Torque is the measure of the force that can cause an object to rotate about an axis. It is computed as the product of the applied force and the lever arm (the perpendicular distance from the axis of rotation to the line of action of the force). In biomechanical contexts, understanding torque is essential for analyzing how muscles produce rotational movements around joints.

Moment of Inertia

The moment of inertia quantifies how mass is distributed relative to an axis and how resistant an object is to changes in its rotational motion. It plays a similar role in rotation as mass does in linear motion. In this scenario, the forearm’s moment of inertia is a crucial parameter because it determines how much torque is required to achieve a given angular acceleration.

Lever Arm

The lever arm is the distance between the axis of rotation and the point where the force is applied. The effectiveness of a force in producing torque increases with a longer lever arm. In biomechanical systems, the attachment point of a muscle (which determines the lever arm) significantly influences the amount of force necessary to rotate a limb.
