∙Calculate the magnitude and direction of the magnetic field...

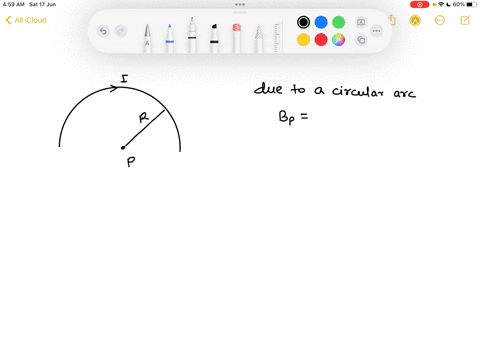

$\bullet$ Calculate the magnitude and direction of the magnetic field at point $P$ due to the current in the semicircular section of wire shown in Figure 20.69 . (Hint: The current in the long, straight section of wire produces no field at $P .$ Can you relate the semicircle to a current loop?)

Key Concepts

Biot-Savart Law

This fundamental law relates magnetic fields to the currents which are their sources. It describes how each infinitesimal element of a current-carrying conductor produces a small contribution to the magnetic field at a given point. The overall field is then found by integrating these contributions over the entire current path, which is especially useful in calculating the magnetic field produced by curved segments such as semicircular arcs.

Magnetic Field of a Circular Current Loop

In magnetostatics, a closed loop carrying current produces a magnetic field that is strongest at points along its axis, with a particularly simple form at the center of a circular loop. For a full circle, the field at the center is given by a well-known formula. Recognizing that a semicircular arc forms a fraction of a complete loop allows one to relate its magnetic field to that of a full circular current loop by scaling accordingly.

Right-Hand Rule

The right-hand rule is a mnemonic for determining the direction of the magnetic field relative to the current flow. When the fingers of the right hand follow the direction of the current, the thumb points in the direction of the resultant magnetic field. This concept is essential in establishing the orientation of the magnetic field produced by portions of current-carrying wires such as semicircular segments.

Superposition Principle in Magnetostatics

This principle states that the net magnetic field produced by multiple current elements is the vector sum of the fields produced by each element individually. In the context of the problem, it allows one to consider only the contribution from the semicircular current-carrying section, ignoring other segments that do not contribute at the point of interest.
