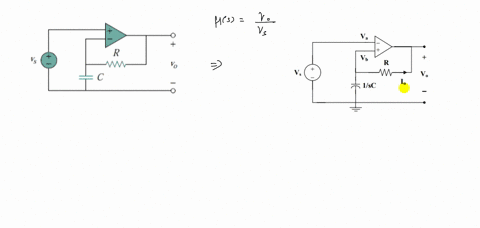

Calculate the gain vo / vi of the op amp circuit in Fig....

Key Concepts

Kirchhoff’s Current Law (KCL)

Kirchhoff’s Current Law states that the total current entering a junction must equal the total current leaving that junction. In op amp circuit analysis, especially when using the virtual short assumption, KCL is used at the input nodes to set up equations that help determine the relationships between the voltages and currents in the feedback network, leading to the derivation of the gain expression.

Voltage Gain Calculation

Voltage gain is defined as the ratio of the output voltage to the input voltage. In op amp circuits, the gain is determined by the resistor network in the feedback path and the input path. Calculating the gain typically involves applying Kirchhoff’s laws and the concept of the virtual short to derive an expression that relates the resistors and input voltage to the output voltage.

Virtual Short Concept

The virtual short is an essential concept in op amp circuits with negative feedback. It refers to the condition where the voltage difference between the inverting and non-inverting inputs is nearly zero, even though they are not physically connected. This assumption simplifies the analysis, as it allows the calculation of node voltages based on the external resistor network and the applied input voltage.

Operational Amplifier Fundamentals

An operational amplifier is a high-gain electronic voltage amplifier that is widely used in analog electronics. Key assumptions include infinite input impedance, zero output impedance, and infinite open-loop gain in the ideal op amp model. These properties simplify circuit analysis significantly and are fundamental when calculating the gain of any op amp circuit.

Negative Feedback

Negative feedback involves feeding a portion of the output signal back to the input in opposition to the incoming signal. This mechanism stabilizes the gain, improves linearity, and reduces sensitivity to component variations. In op amp circuits, negative feedback is used to control the overall gain and establish predictable behavior, which is critical for accurate gain calculations.
