Calculate the magnitude of the force on cables 1 and 2 in Figure 28.

Name: Problem 63, Chapter 12: Calculus for AP
Uploaded: 2023-09-09T10:40:11-08:00
Duration: 5 min 25 s
Channel: Khushbu Rani
Description: Calculate the magnitude of the force on cables 1 and 2 in Figure 28.

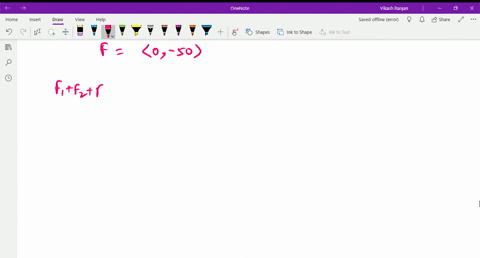

step 1 There is a question in this I need to calculate the magnitude of the force on the cable 1 and 2

Calculate the magnitude of the force on cables 1 and 2 in...

Key Concepts

Tension in Cables

Tension refers to the force transmitted through a cable or string when it is pulled tight by forces acting from opposite ends. In the context of cables supporting loads, understanding tension is crucial, as it directly relates to the magnitude of the force in each cable necessary to maintain equilibrium and ensure the stability of the structure.

Force Resolution and Vector Components

Force resolution involves breaking down forces into components, usually horizontal and vertical, which simplifies the analysis of the system. Vector components allow us to independently analyze the contributions of each force direction when applying the equilibrium equations, providing a structured approach to solving problems involving forces in cables.

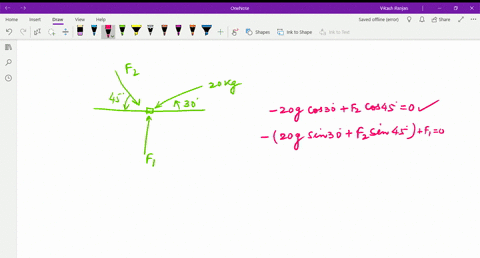

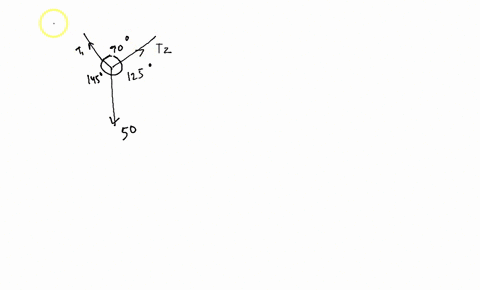

Free-Body Diagram

A free-body diagram is a simplified representation of a physical system or structure isolated from its surroundings, where all external forces acting on it are depicted. This tool is essential in mechanics to visualize forces such as tension in cables, reaction forces, and any applied loads, which then aids in setting up equilibrium equations.

Static Equilibrium

This concept involves analyzing a system where all forces and moments are balanced, meaning the net force and net moment on the system are zero. In the context of cable forces, understanding static equilibrium is crucial because it provides the basis for setting up equations that relate the various forces acting on the structure, ensuring that the system remains at rest.
