Calculate the R value of (a) a window made of a single pane...

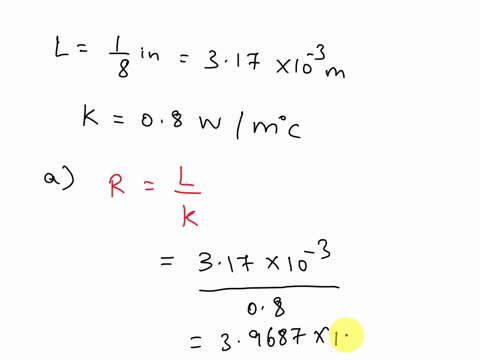

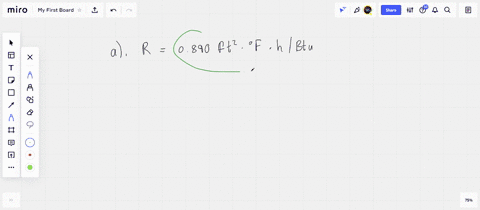

Calculate the $R$ value of (a) a window made of a single pane of flat glass $\frac{1}{8}$ in. thick, and $(b)$ a thermal window made of two single panes each $\frac{1}{8}$ in. thick and separated by a $\frac{1}{4}$ -in. air space. (c) By what factor is the transfer of energy by heat through the window reduced by using the thermal window instead of the single pane window?

Key Concepts

Insulating Air Gaps

Air gaps can serve as effective insulators because still air has a low thermal conductivity. In constructions such as thermal windows, an air space between glass panes adds significant resistance to heat flow. The effectiveness of the air gap depends on its width and the conditions within it, making it an important factor in enhancing the overall R-value of the assembly.

Thermal Resistance (R-value)

The R-value is a measure of a material’s resistance to heat flow. It quantifies how well a material or assembly insulates against conductive heat transfer, with higher R-values indicating better insulating properties. This concept is fundamental in understanding and comparing the thermal performance of building materials and window assemblies.

Composite Systems and Series Addition

When dealing with multi-layered assemblies, such as double-pane windows, the overall thermal resistance is obtained by summing the R-values of each individual layer. This principle applies when layers are arranged in series, meaning that each layer presents its own resistance to heat flow and the total resistance is the sum of these individual contributions.

Heat Conduction Fundamentals

Heat conduction is the transfer of thermal energy through a material due to a temperature gradient. This process is governed by the material’s conductivity and the thickness of the material. The basic calculation of thermal resistance for a homogeneous material involves dividing the material's thickness by its thermal conductivity.
