Calculate the total equivalent length of 1 -in. wrought iron...

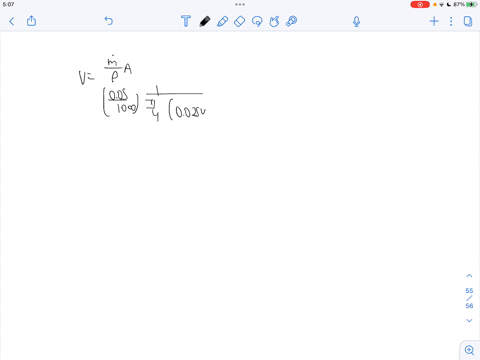

Calculate the total equivalent length of 1 -in. wrought iron pipe that would produce a pressure drop of $70 \mathrm{kPa}$ due to fluid friction, for a fluid flowing at the rate of $50 \mathrm{~L} / \mathrm{min}$. The fluid has a density of $988 \mathrm{~kg} / \mathrm{m}^3$ and a viscosity of two centipoises.

Key Concepts

Darcy-Weisbach Equation

The Darcy-Weisbach equation is a fundamental relationship used in fluid mechanics to calculate the frictional pressure loss (or head loss) in a pipe. It relates the pressure drop to the pipe length, diameter, fluid velocity, friction factor, and fluid density, providing a basis for analyzing flow resistance in pipe systems.

Equivalent Length

Equivalent length is a concept used to express the additional length of pipe that would produce the same frictional losses as those introduced by fittings, valves, or other components in a piping system. This approach helps in simplifying the analysis and design of systems by allowing diverse elements to be represented in terms of a straight pipe's characteristics.

Friction Factor

The friction factor is a dimensionless coefficient that characterizes the resistance to flow within a pipe due to its roughness and the nature of the flow. It is crucial in calculating frictional losses using the Darcy-Weisbach equation and depends on whether the flow is laminar or turbulent, which in turn is influenced by the Reynolds number.

Reynolds Number

The Reynolds number is a dimensionless quantity that helps determine the flow regime within a pipe—whether the flow is laminar, transitional, or turbulent. It is calculated based on fluid properties, flow velocity, and a characteristic length (such as pipe diameter), and is essential for selecting the correct friction factor and predicting flow behavior.

Pressure Drop

Pressure drop refers to the reduction in pressure experienced by a fluid as it flows through a pipe or system due to friction and other losses. It is a key parameter in fluid mechanics that quantifies how much energy is dissipated as the fluid moves, affecting the required pumping power or system performance.
