Question
Calculate the transformer turns ratio required to connect four parallel $16-\Omega$ speakers so that they appear as an $8-\mathrm{k} \Omega$ effective load.
Step 1
When resistors (or in this case, speakers) are connected in parallel, the total resistance (or impedance) can be calculated using the formula: 1/R_total = 1/R1 + 1/R2 + 1/R3 + ... In this case, all four speakers have a resistance of 16 ohms, so the formula Show more…
Show all steps
Your feedback will help us improve your experience
Nolan Smyth and 75 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

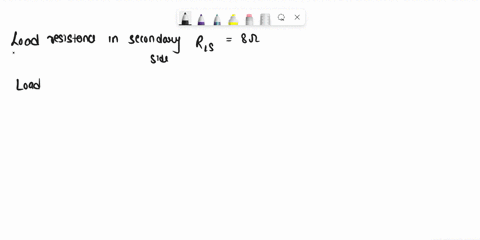

What transformer turns ratio is required to match an 8-Ω speaker load so that the effective load resistance seen at the primary is 12.8 kΩ?
(II) The output of an electrocardiogram amplifier has an impedance of 45$\mathrm { k } \Omega$ . It is to be connected to an $8.0 - \Omega$ loud speaker through a transformer. What should be the turns ratio of the transformer?
A transformer is used to match an amplifier with an $8-\Omega$ load as shown in Fig. $13.105 .$ The Thevenin equivalent of the amplifier is: $V_{\mathrm{Th}}=10 \mathrm{V}$ $Z_{\mathrm{Th}}=128 \Omega$ (a) Find the required turns ratio for maximum energy power transfer.. (b) Determine the primary and secondary currents. (c) Calculate the primary and secondary voltages.
