Carnot engine working between 300 K and 600 K has work output of 800 J per cycle. What is amo

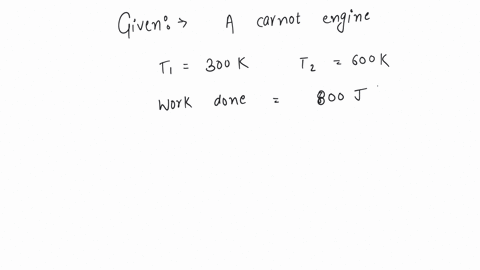

step 1 Hello friends in the question it is given that car not engine working between 300 Kelvin and 600

Carnot engine working between 300 K and 600 K has work...

Carnot engine working between $300 \mathrm{~K}$ and $600 \mathrm{~K}$ has work output of $800 \mathrm{~J}$ per cycle. What is amount of heat energy supplied to the engine from source per cycle (A) $1600\{\mathrm{~J} /$ (cycle)\} (B) $2000\{\mathrm{~J} /(\mathrm{cycle})\}$ (C) $1000\{\mathrm{~J} /($ cycle $)\}$ (D) $1800\{\mathrm{~J} /($ cycle $)\}$

Carnot engine working between $300 \mathrm{~K}$ and $600 \mathrm{~K}$ has work output of $800 \mathrm{~J}$ per cycle. What is amount of heat energy supplied to the engine from source per cycle
(A) $1600\{\mathrm{~J} /$ (cycle)\}
(B) $2000\{\mathrm{~J} /(\mathrm{cycle})\}$
(C) $1000\{\mathrm{~J} /($ cycle $)\}$
(D) $1800\{\mathrm{~J} /($ cycle $)\}$

Key Concepts

Heat Energy Transfer

Heat energy transfer refers to the flow of thermal energy from a high-temperature reservoir to a working substance in a heat engine. In a Carnot cycle, this energy input from the high-temperature source is partially converted into work, while the remainder is rejected to the low-temperature sink, with the amounts directly related through the engine's efficiency.

Work in Thermodynamic Cycles

Work in thermodynamic cycles is the net energy output that is produced when a system undergoes a series of processes and returns to its initial state. In heat engines, the work output per cycle is obtained by the difference between the heat absorbed and the heat rejected, and for an ideal cycle such as the Carnot cycle, this work output is maximized according to the engine's efficiency.

Carnot Engine

A Carnot engine is an idealized heat engine that operates on the Carnot cycle, which represents the maximum possible efficiency that any heat engine can achieve operating between two temperature reservoirs. It serves as a benchmark for real engines and is used to illustrate the fundamental limits imposed by the second law of thermodynamics.

Thermodynamic Efficiency

Thermodynamic efficiency in the context of heat engines is defined as the ratio of the work output to the heat input. For a Carnot engine, the efficiency is determined solely by the temperatures of the hot and cold reservoirs, following the relation ? = 1 - (T_C / T_H), where T_C is the cold reservoir temperature and T_H is the hot reservoir temperature.
