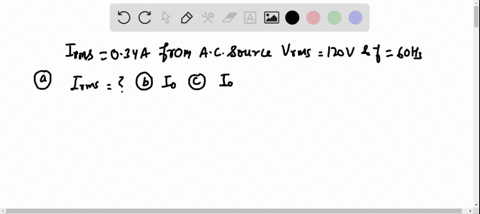

·The plate on the back of a certain computer scanner says that the unit draws 0.34 A of current

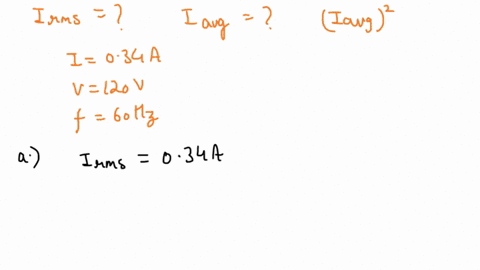

step 1 So on the back of the panel, it specifies that the current is 0 .34 amps. But whenever they spec

·The plate on the back of a certain computer scanner says...

Key Concepts

Average of the Square (Mean Square) of a Function

The average of the square of a quantity, often referred to as the mean square value, is calculated by squaring the instantaneous values of the waveform, averaging them over a period, and then, if necessary, taking the square root (to obtain the RMS value). This measure is particularly useful in power calculations since power is proportional to the square of the current or voltage. For a sinusoidal signal, the mean square value is directly related to the square of its amplitude.

Amplitude

The amplitude of a waveform is the maximum value of the signal from its mean position. In AC circuits, the amplitude represents the peak magnitude of the voltage or current. It is crucial for determining the overall behavior of the waveform, even though power calculations typically rely on the RMS value rather than the peak amplitude.

Average Value

The average value of an AC waveform over a complete cycle refers to the arithmetic mean of the instantaneous values. For symmetric waveforms like a sine wave, this average value over one period is zero because the positive and negative halves cancel each other out. This concept is important for understanding why DC components are sometimes absent in AC signals.

Alternating Current (AC) Waveforms

AC waveforms are signals that oscillate periodically with time. A common example is the sinusoidal waveform, which is characterized by parameters such as amplitude, frequency, and phase. Understanding these waveforms is fundamental as they are widely used in power distribution and electronics, and their analysis includes examining both instantaneous and average properties.

Root-Mean-Square (RMS) Value

The RMS value of an AC signal is the square root of the mean (average) of the squares of the instantaneous values over a cycle. It gives a measure of the effective or equivalent DC value in terms of power delivery. For a sinusoidal waveform, the RMS is related to the peak amplitude by a constant factor, which facilitates the calculation of power using AC signals.
