Che wiring circuit for a typical room is shown schematically. (a) Of the six locations for a circuit breaker indicated by $A, B, C, D, E,$ and $F,$ which one would best protect the wiring against a short circuit in any one of the three appliances? Explain. (b) The potential difference between hot and neutral is $120 \mathrm{V}$. Suppose the heater draws $1500 \mathrm{W}$, the lamp draws $300 \mathrm{W}$, and the microwave draws 1200 W. The circuit breaker is rated at 20.0 A. Can all three devices be operated simultaneously without tripping the breaker? Explain.

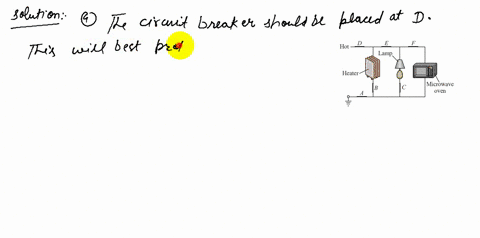

Che wiring circuit for a typical room is shown schematically. (a) Of the six locations for a circuit breaker indicated by $A, B, C, D, E,$ and $F,$ which one would best protect the wiring against a short circuit in any one of the three appliances? Explain.
(b) The potential difference between hot and neutral is $120 \mathrm{V}$. Suppose the heater draws $1500 \mathrm{W}$, the lamp draws $300 \mathrm{W}$, and the microwave draws 1200 W. The circuit breaker is rated at 20.0 A. Can all three devices be operated simultaneously without tripping the breaker? Explain.

Key Concepts

Overcurrent Protection

Overcurrent protection is a key safety feature in electrical systems, ensuring that any current exceeding a safe limit—such as in the case of a short circuit—is quickly interrupted to prevent damage or hazards. This protection is typically provided by devices like circuit breakers, which are designed to detect and respond to current surges, thereby protecting both the wiring and connected appliances from electrical fires and other damage.

Load Analysis

Load analysis in an electrical circuitry context involves calculating the total electrical demand imposed by multiple devices on a single circuit. By determining the sum of the individual loads and comparing it to the circuit breaker’s current rating, one can assess if the circuit is overloaded. This ensures that the combined power consumption of the connected appliances remains within safe operating limits, avoiding nuisance trips or, more critically, damage due to overcurrent.

Circuit Breaker Placement

Circuit breaker placement is critical in wiring systems for ensuring that all segments of the circuit are adequately protected. The location of the circuit breaker should be chosen such that it can effectively interrupt power in the event of a fault occurring anywhere in the system. Optimal placement often ensures that the breaker shields the wiring from high fault currents that might arise from any connected appliance, thus maximizing the safety and effectiveness of the overcurrent protection provided.
