Chromium crystallizes as a body-centered cubic structure...

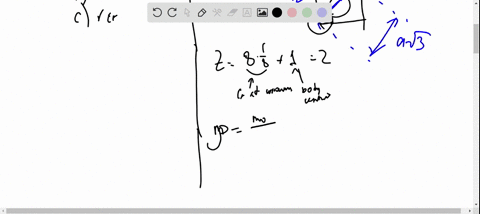

Chromium crystallizes as a body-centered cubic structure with a density of $7.20 \mathrm{~g} \cdot \mathrm{cm}^{-3}$ at $20^{\circ} \mathrm{C}$. Calculate the length of a unit cell and the distance between successive 110,200 , and 111 planes.

Key Concepts

Miller Indices

Miller indices are a set of three integers that describe the orientation of atomic planes in a crystal. They provide a systematic way to denote the crystallographic planes and are crucial for analyzing how different planes, such as those in cubic lattices, intersect with the crystal's axes.

Unit Cell

The unit cell is the smallest repeating unit in a crystal lattice that, when repeated in all spatial directions, creates the entire crystal structure. Its dimensions and atomic arrangement not only define the crystal's geometry but also affect intrinsic properties like density and interplanar spacings, which are important for understanding material behavior.

Interplanar Spacing

Interplanar spacing refers to the perpendicular distance between parallel planes of atoms in a crystal. It is an important concept in the fields of X-ray diffraction and crystallography because it relates to the crystal's structure and symmetry. The spacing can be calculated using the lattice parameters and the Miller indices of the planes in cubic materials.

Body-Centered Cubic Structure

A body-centered cubic (BCC) structure is a type of crystal lattice where atoms are located at all eight corners of a cube and one atom is positioned at the center of the cube. This configuration impacts the number of atoms per unit cell, atomic packing, and overall symmetry, which are essential in determining material properties such as density and interplanar spacing.

Density in Crystals

In crystallography, density is related to the mass of atoms within a unit cell and the volume of that cell. By knowing the atomic mass, the number of atoms per unit cell, and the unit cell's dimensions, one can calculate the density of the crystal. Conversely, the measured density combined with the unit cell geometry helps in determining the dimensions of the cell.
