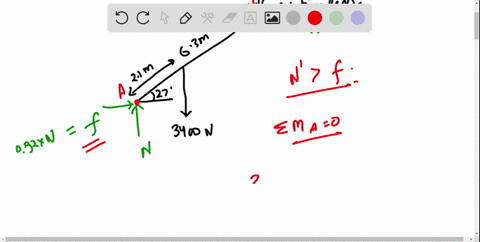

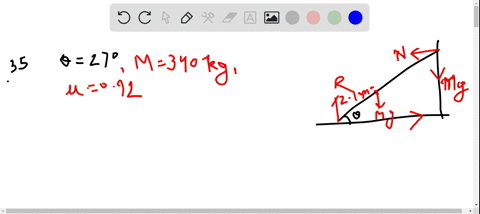

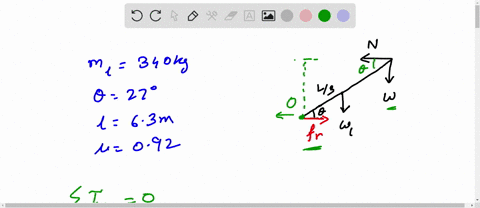

Climbers attempting to cross a stream place a 340 -kg log against a vertical, frictionless ice cliff on the opposite side (Fig. 12.25 ). The log slopes up at $27^{\circ}$ and its center of gravity is one-third of (FIGURE CANNOT COPY) the way along its 6.3 -m length. If the coefficient of friction between the left end of the log and the ground is $0.92,$ what's the maximum mass for a climber and pack to cross without the log slipping?

Climbers attempting to cross a stream place a 340 -kg log against a vertical, frictionless ice cliff on the opposite side (Fig. 12.25 ). The log slopes up at $27^{\circ}$ and its center of gravity is one-third of
(FIGURE CANNOT COPY)
the way along its 6.3 -m length. If the coefficient of friction between the left end of the log and the ground is $0.92,$ what's the maximum mass for a climber and pack to cross without the log slipping?

Key Concepts

Force Decomposition

Force decomposition involves breaking a force into its components along mutually perpendicular axes, typically horizontal and vertical. This process is fundamental when dealing with inclined planes or forces applied at angles, allowing for the application of equilibrium conditions in each direction.

Torque and Moment Equilibrium

Torque, or moment of force, represents the rotational influence of a force applied at a distance from a pivot point. Ensuring that the counterclockwise and clockwise torques balance (i.e., their sum is zero) is key in solving problems involving rotational equilibrium.

Center of Mass

The center of mass is the point at which the mass of an object or system is effectively concentrated. Understanding its location is crucial in statics because the weight of an object can be considered to act at this point, affecting torque and balance.

Static Equilibrium

Static equilibrium occurs when an object is at rest and the sum of all forces and torques acting on it is zero. This concept is essential for analyzing situations where multiple forces—both linear and rotational—must balance to prevent any motion.

Friction

Friction is the resistive force that opposes the relative motion between two contacting surfaces. Its magnitude, often determined by the coefficient of friction multiplied by the normal force, is critical in preventing objects from sliding in static equilibrium scenarios.
