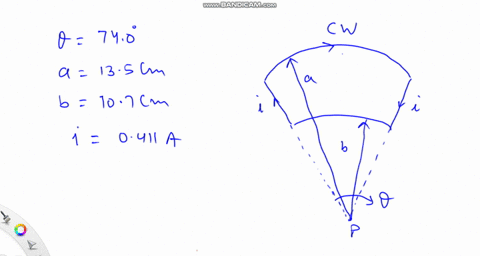

co In Fig. $29-39$, two circular arcs have radii $a=13.5 \mathrm{~cm}$ and $b=$ $10.7 \mathrm{~cm}$, subtend angle $\theta=74.0^{\circ}$ carry current $i=0.411 \mathrm{~A}$, and share the same center of curvature $P .$ What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at $P$ ?

co In Fig. $29-39$, two circular arcs have radii $a=13.5 \mathrm{~cm}$ and $b=$ $10.7 \mathrm{~cm}$, subtend angle $\theta=74.0^{\circ}$
carry current $i=0.411 \mathrm{~A}$, and share the same center of curvature $P .$ What are the (a) magnitude and (b) direction (into or out of the page) of the net magnetic field at $P$ ?

Key Concepts

Superposition Principle

The superposition principle in magnetostatics states that the net magnetic field due to several independent sources is the vector sum of the fields produced by each source individually. This principle allows one to combine the contributions from multiple current-carrying arcs to determine the overall magnetic field at a point.

Right-Hand Rule

The right-hand rule is a practical method used to determine the direction of the magnetic field generated by a current-carrying conductor. By orienting the thumb in the direction of the current, the curled fingers indicate the direction of the magnetic field lines, which is useful in analyzing the orientation of fields in various geometries.

Biot–Savart Law

The Biot–Savart Law is a fundamental principle used to calculate the magnetic field produced by a current element. It establishes that each small segment of current contributes to the total magnetic field in a way that depends on the current magnitude, the geometry of the segment, the distance from the segment to the observation point, and the angle between them.

Magnetic Field Due to a Circular Arc

When dealing with a circular arc carrying a steady current, the magnetic field at the center of curvature can be computed by integrating the contributions given by the Biot–Savart Law. The resulting expression shows that the field magnitude is directly proportional to the current and the subtended angle (in radians) and inversely proportional to the radius of the arc.
