Coil 1 has L1=25 mH and N1=100 turns. Coil 2 has L2= 40 mH and N2=200 turns. The coils are fixed

step 1 We are assuming that we have two coils, as I specified in this writing. We're told that the coil

Coil 1 has L1=25 mH and N1=100 turns. Coil 2 has L2= 40 mH...

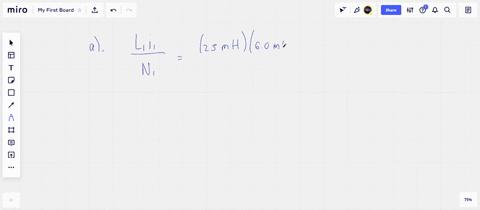

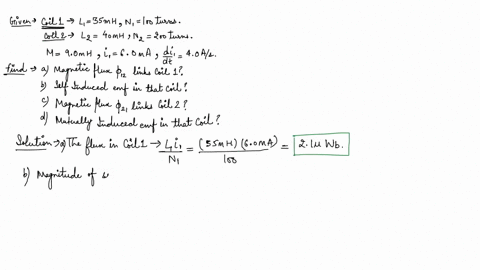

Coil 1 has $L_{1}=25 \mathrm{mH}$ and $N_{1}=100$ turns. Coil 2 has $L_{2}=$ 40 $\mathrm{mH}$ and $N_{2}=200$ turns. The coils are fixed in place; their mutual inductance $M$ is 3.0 $\mathrm{mH}$ . $\mathrm{A} 6.0 \mathrm{mA}$ current in coil 1 is changing at the rate of 4.0 $\mathrm{A} / \mathrm{s}$ (a) What magnetic flux $\Phi_{12}$ links coil $1,$ and (b) what self-induced emf appears in that coil? (c) What magnetic flux $\Phi_{21}$ links coil $2,$ and $(\mathrm{d})$ what mutually induced emf appears in that coil?

Coil 1 has $L_{1}=25 \mathrm{mH}$ and $N_{1}=100$ turns. Coil 2 has $L_{2}=$
40 $\mathrm{mH}$ and $N_{2}=200$ turns. The coils are fixed in place; their mutual inductance $M$ is 3.0 $\mathrm{mH}$ . $\mathrm{A} 6.0 \mathrm{mA}$ current in coil 1 is changing
at the rate of 4.0 $\mathrm{A} / \mathrm{s}$ (a) What magnetic flux $\Phi_{12}$ links coil $1,$ and
(b) what self-induced emf appears in that coil? (c) What magnetic
flux $\Phi_{21}$ links coil $2,$ and $(\mathrm{d})$ what mutually induced emf appears in
that coil?

Key Concepts

Self Inductance

Self inductance is a property of a coil or circuit that quantifies the ability to induce an electromotive force (emf) in itself when the electrical current flowing through it changes. It is defined as the ratio of the magnetic flux linking the coil to the current producing it, serving as a measure of how effectively the coil's magnetic field interacts with its own winding.

Mutual Inductance

Mutual inductance quantifies the ability of one coil to induce an emf in a nearby coil as a result of a changing current in the first coil. It is determined by the physical parameters such as the number of turns, geometry of the coils, and their relative positions, and it plays a crucial role in transformer design and coupled circuits.

Magnetic Flux Linkage

Magnetic flux linkage refers to the total magnetic flux passing through a coil, taking into account the number of turns of the coil. It is the product of the magnetic flux and the number of turns that the flux penetrates, and is fundamental in calculating induced voltages in the context of electromagnetic induction.

Faraday's Law of Electromagnetic Induction

Faraday's law of electromagnetic induction states that a change in magnetic flux through a circuit induces an electromotive force (emf) in the circuit. This principle underlies the operation of many electrical devices and is mathematically expressed as the induced emf being equal to the negative rate of change of the magnetic flux, highlighting the opposition to the change by Lenz's law.
