Compare two methods of heating 50^∘ C water. (1) In the first, water at a temperature of 50^∘ C

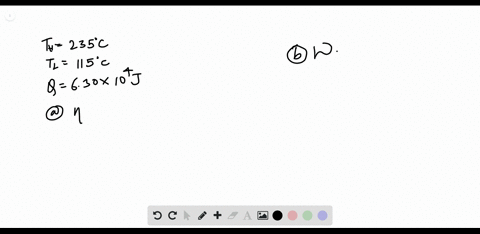

step 1 problem we have a carnal engine which operates between a high temperature of 235 degrees Celsius

Compare two methods of heating 50^∘ C water. (1) In the...

Compare two methods of heating $50^{\circ} \mathrm{C}$ water. (1) In the first, water at a temperature of $50^{\circ} \mathrm{C}$ is heated further by a solar collector. (2) The radiation of the sun is used to drive an ideal Carnot heat engine between temperatures of $300^{\circ} \mathrm{C}$ and $15^{\circ} \mathrm{C}$. The energy released by this ideal power plant is used to drive an ideal heat pump which gets its entropy at $15^{\circ} \mathrm{C}$ to heat the $50^{\circ} \mathrm{C}$ water. In both cases, $50 \%$ of solar radiation is utilized. a) How large is the ratio of the efficiencies of the methods? b) Determine the ratio of the rates of production of entropy for the methods. Assume solar radiation not to supply any entropy.

Key Concepts

Temperature Scales and the Use of Absolute Temperatures

In thermodynamics, using absolute temperatures measured in Kelvin is critical when applying the Carnot relations and other efficiency formulas, because the ratios of temperatures determine the maximum possible work or the performance limits of devices like heat engines and heat pumps. Accurate calculations of efficiencies and entropy production hinge upon proper conversion of temperatures to an absolute scale.

Entropy Production and Generation

Entropy production measures the irreversible dispersal of energy during a process. In thermodynamic systems, particularly when energy is converted from one form to another, the rate at which entropy is generated becomes a crucial metric for assessing the irreversibility of the process and the quality or usefulness of the energy output. Analyzing entropy production helps compare competing processes that may have equal energy input but differ in their thermodynamic ‘efficiency’ in terms of available work.

Carnot Efficiency

Carnot efficiency is the theoretical maximum efficiency for a heat engine operating between two heat reservoirs, given by one minus the ratio of the absolute temperature of the cold reservoir to that of the hot reservoir. It establishes fundamental limits on any conversion process involving thermal energy and is central for analyzing and comparing processes that depend on temperature differences for energy conversion.

Coefficient of Performance (COP) for Heat Pumps

The coefficient of performance (COP) is a measure of the efficiency of a heat pump, defined as the ratio of the heat delivered to the higher?temperature reservoir to the work input required by the pump. It quantifies how effectively work, often produced by a separate energy conversion process, is used to transport heat from a lower temperature level to a higher one, thereby directly impacting the overall efficiency of combined thermal systems.

Direct Solar Thermal Utilization

Direct solar thermal utilization refers to the method of capturing solar radiation and using it immediately to heat a working fluid, such as water, without intermediate energy conversion steps. This concept highlights the advantages of fewer conversion losses and simpler entropy considerations since the absorbed radiation is directly used to raise the fluid’s temperature.
