Question
Consider a set of two slits each of width $b=5 \times 10^{-2} \mathrm{~cm}$ and separated by a distance $d=0.1 \mathrm{~cm}$, illuminated by a monochromatic light of wavelength $6.328 \times 10^{-5} \mathrm{~cm} .$ If a convex lens of focal length $10 \mathrm{~cm}$ is placed beyond the double slit arrangement, calculate the positions of the minima inside the first diffraction minimum.
Step 1
Step 1: The condition for the diffraction minimum is given by $\sin \theta = \frac{m + \frac{1}{2}}{d} \lambda$, where $m$ is the order of the minimum, $d$ is the distance between the slits, and $\lambda$ is the wavelength of the light. Show more…
Show all steps
Your feedback will help us improve your experience
Ajay Singhal and 91 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider a set of two slits cach of width $b=5 \times 10^{-2} \mathrm{~cm}$ and separated by a distance $d=0.1 \mathrm{~cm}$, illuminated by a rnonochromatic light of wavelength $6.328 \times 10^{-5} \mathrm{~cm}$. If a coavex lens of focal length $10 \mathrm{~cm}$ is placed beyond the double slit arrangement, calculate the positions of the minima insido the first diffraction minimum.

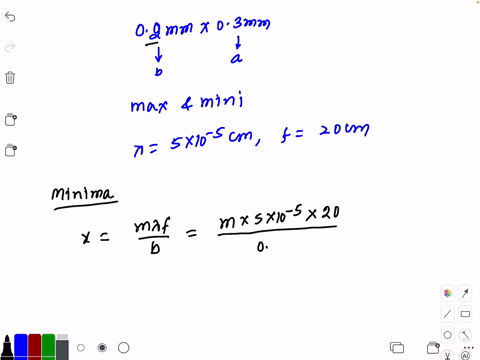

Consider a rectangular aperture of dimensions $0.2 \mathrm{~mm} \times$ $0.3 \mathrm{~mm}$. Obtain the positions of the first few maxims and minima in the Fraunhofer diffraction pattern along directions parallel to the length and breadth of the rectengle. Assume $\lambda=5 \times 10^{-5} \mathrm{~cm}$ and that the diffraction pattern is produced at the focal plane of a lens of focal length $20 \mathrm{~cm}$.
Consider a rectangular aperture of dimensions $0.2 \mathrm{~mm}$ $\times 0.3 \mathrm{~mm}$. Obtain the positions of the first few maxima and minima in the Fraunhofer diffraction pattern along directions parallel to the length and breadth of the rectangle. Assume $\lambda=5 \times 10^{-5} \mathrm{~cm}$ and that the diffraction pattern is produced at the focal plane of a lens of focal length $20 \mathrm{~cm}$. [Ans: Along the $x$ -axis, minima will occur at $x \approx 0.05$, $0.10,0.15, \ldots \mathrm{cm} ;$ along the $y$ -axis, minima will occur at $$ y \approx 0.033,0.067,0.1, \ldots \mathrm{cm}] $$.
