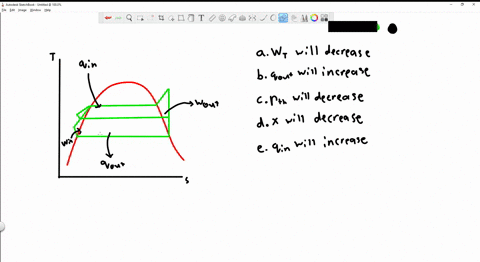

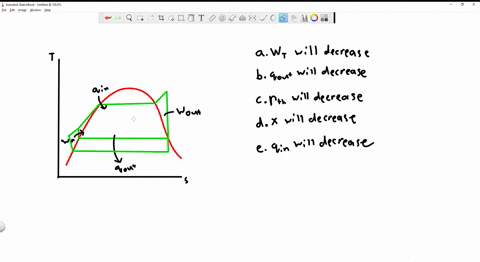

Consider a simple ideal Rankine cycle with fixed boiler and condenser pressures. If the cycle is modified with reheating, $(a)$ the turbine work output will decrease. $(b)$ the amount of heat rejected will decrease. $(c)$ the pump work input will decrease. $(d)$ the moisture content at turbine exit will decrease. $(e)$ the amount of heat input will decrease.

Consider a simple ideal Rankine cycle with fixed boiler and condenser pressures. If the cycle is modified with reheating,
$(a)$ the turbine work output will decrease.
$(b)$ the amount of heat rejected will decrease.
$(c)$ the pump work input will decrease.
$(d)$ the moisture content at turbine exit will decrease.
$(e)$ the amount of heat input will decrease.

Key Concepts

Moisture Content in Turbine

Moisture content in the steam exiting a turbine is a critical parameter because high moisture can lead to blade erosion and decreased turbine efficiency. In a reheat cycle, reheating the steam before final expansion reduces the moisture content at the turbine exit by keeping the steam in a drier state, which improves the cycle’s reliability and efficiency.

Heat Rejection from the Condenser

Heat rejection in the condenser is determined by the difference between the energy added during heating and the work output extracted by the turbine. With the reheat modification, because the steam exits the turbine at a higher average enthalpy and lower moisture content, the amount of heat that needs to be rejected in the condenser often decreases, which contributes to improved cycle efficiency.

Turbine Expansion and Work Output

In the Rankine cycle, the turbine work output is generated by the expansion of high-energy steam across the turbine stages. The reheat process modifies the expansion path by reducing the throttling of steam into the wet region, thereby increasing the effective work output. This results in a greater portion of the input heat being converted into mechanical work.

Rankine Cycle

The Rankine cycle is a thermodynamic cycle used to convert heat into work, primarily in steam power plants. It typically involves four main components: a boiler where water is heated into steam, a turbine where the steam expands to produce work, a condenser where the steam is condensed back to water, and a pump to return the water to the boiler. This cycle forms the basis for understanding power generation and cycle efficiency analysis.

Reheat Process

The reheat process in a Rankine cycle involves expanding the steam partially in a turbine, then reheating it, and expanding it further in a second turbine stage. This method raises the average temperature at which heat is added to the cycle, which increases the overall thermal efficiency. Additionally, it reduces the moisture content at the turbine exit, which is beneficial for turbine blade longevity and performance.
