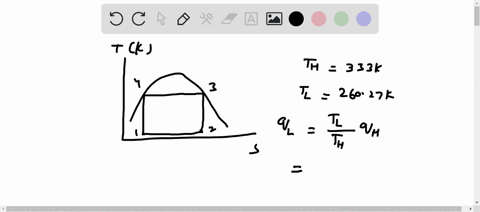

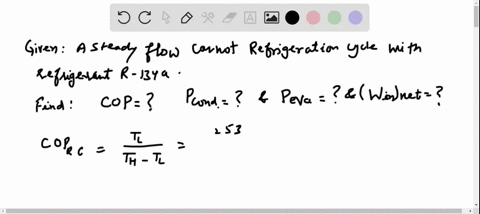

Consider a steady-flow Carnot refrigeration cycle that uses refrigerant- $134 \mathrm{a}$ as the working fluid. The maximum and minimum temperatures in the cycle are 30 and $-20^{\circ} \mathrm{C}$ respectively. The quality of the refrigerant is 0.15 at the beginning of the heat absorption process and 0.80 at the end. Show the cycle on a $T-s$ diagram relative to saturation lines, and determine $(a)$ the coefficient of performance, $(b)$ the $\operatorname{con}-$ denser and evaporator pressures, and $(c)$ the net work input.

Key Concepts

Coefficient of Performance (COP)

The coefficient of performance is a measure of a refrigeration cycle’s efficiency, defined as the ratio of the refrigeration effect (heat removed from the low-temperature reservoir) to the net work input. It provides a benchmark for comparing the performance of different refrigeration systems and indicates how effectively the system uses work to remove heat.

Saturation Pressure and Phase Change

Saturation pressure refers to the pressure at which a liquid and its vapor coexist in equilibrium at a given temperature. In refrigeration cycles, the evaporator and condenser operate near these saturation conditions, making the correct determination of saturation pressures essential for the proper design and analysis of the system.

Vapor Quality

Vapor quality is the ratio of the mass of the vapor phase to the total mass in a two-phase mixture. It is an important parameter in refrigeration cycles because it quantifies the degree of phase change in the working fluid during processes such as evaporation and condensation, affecting both energy transfer and system performance.

Carnot Refrigeration Cycle

This is an idealized refrigeration cycle that operates between two heat reservoirs at different temperatures. It comprises two isothermal processes—one for heat absorption (evaporation) and one for heat rejection (condensation)—and two adiabatic processes. Its significance lies in providing an upper limit to the efficiency (or coefficient of performance) that any real refrigeration cycle can achieve.

Refrigerant Phase Properties

Refrigerants are working fluids chosen for their favorable thermodynamic properties, such as appropriate boiling points and high latent heat. Understanding their behavior during phase-change processes, including vaporization and condensation, is crucial. These properties impact pressures, temperatures, and the system's energy transfer during the refrigeration cycle.

Steady-Flow Process

In a steady-flow process, the properties of the working fluid at any given point in the system remain constant over time. This assumption simplifies the analysis of refrigeration cycles because mass and energy balances can be applied without accounting for time-dependent changes, making it possible to analyze the cycle components in a systematic way.

Temperature-Entropy (T-s) Diagram

The T-s diagram is a graphical representation of the thermodynamic processes occurring in a cycle. It plots temperature versus specific entropy and is particularly useful for visualizing phase changes and the heat transfer processes. In refrigeration cycles, it helps illustrate how the working fluid moves along the saturation lines during evaporation and condensation limits.
