Consider a uniformly doped silicon npn bipolar transistor at T=300 K. The device is biased in t

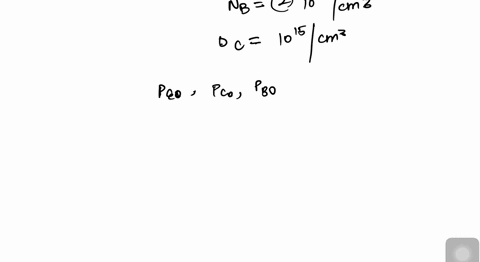

step 1 In this question we have to find V -BE and the PE at 0 .0. So first we have that nb -0 is n i sq

Consider a uniformly doped silicon npn bipolar transistor at...

Consider a uniformly doped silicon npn bipolar transistor at $T=300 \mathrm{~K}$. The device is biased in the forward-active mode with $V_{C B}=2.5 \mathrm{~V}$. The metallurgical base width is $x_{B 0}=1.0 \mu \mathrm{m} .$ The doping concentrations are $N_{E}=8 \times 10^{17} \mathrm{~cm}^{-3}, N_{B}=2 \times 10^{16} \mathrm{~cm}^{-3}$, and $N_{c}=10^{15} \mathrm{~cm}^{-3} .(a)$ Determine the B-E voltage such that the minority carrier electron concentration, $n_{B}$, at $x=0$ is 10 percent of the majority carrier hole concentration. ( $b$ ) At this bias, determine the minority carrier hole concentration at $x^{\prime}=0$.

Consider a uniformly doped silicon npn bipolar transistor at $T=300 \mathrm{~K}$. The device is biased in the forward-active mode with $V_{C B}=2.5 \mathrm{~V}$. The metallurgical base width is $x_{B 0}=1.0 \mu \mathrm{m} .$ The doping concentrations are $N_{E}=8 \times 10^{17} \mathrm{~cm}^{-3}, N_{B}=2 \times 10^{16} \mathrm{~cm}^{-3}$,
and $N_{c}=10^{15} \mathrm{~cm}^{-3} .(a)$ Determine the B-E voltage such that the minority carrier electron concentration, $n_{B}$, at $x=0$ is 10 percent of the majority carrier hole concentration. ( $b$ ) At this bias, determine the minority carrier hole concentration at $x^{\prime}=0$.

Key Concepts

Thermal Voltage

The thermal voltage, typically around 25.85 mV at room temperature (300 K), is a characteristic parameter that appears in the exponential relationship between applied bias and carrier concentration. It represents the energy scale of thermal agitation in the semiconductor and is essential for quantitatively relating voltage to carrier distribution changes. An understanding of the thermal voltage is crucial for analyzing and predicting the behavior of semiconductor devices under various operating conditions.

Exponential Relationship of Carrier Concentration with Bias (Boltzmann Relation)

The carrier concentrations on either side of a p-n junction are governed by an exponential dependence on the applied voltage as outlined in the Boltzmann approximation of the Shockley diode equation. This relation means that even a small applied voltage can cause a large variation in carrier concentrations at the junction, a feature that is leveraged in devices such as bipolar transistors to control current. The exponential dependence is particularly critical in determining the injection levels of minority carriers for proper device operation.

Doping in Semiconductors

Doping introduces impurity atoms into an intrinsic semiconductor to produce either an excess of electrons (n-type) or holes (p-type), thereby establishing majority and minority carrier populations. The doping concentrations govern the level of free carriers and influence the device’s electrical characteristics, such as conductivity and the equilibrium carrier concentrations, which are essential in determining the response of devices like bipolar transistors under various biasing conditions.

Bipolar Junction Transistor (BJT) Operation

Bipolar junction transistors rely on both majority and minority charge carriers for conduction. In the forward-active mode, one junction (usually the emitter–base junction) is forward-biased, promoting the injection of minority carriers into the base, while the other junction (the collector–base junction) is reverse-biased. This mode of operation is fundamental for amplification and switching, and understanding the way biasing influences carrier injection and transport is critical in circuit design and analysis.

Minority and Majority Carrier Concentrations

In doped semiconductors, majority carriers are those that are present in higher concentration due to doping, while minority carriers exist in much lower concentrations. Under forward bias conditions, minority carriers are injected across a junction, and their concentration can significantly increase relative to equilibrium values. The analysis of these carrier concentrations, and their ratios, is central to understanding device behavior, as it directly affects current flow and recombination processes in semiconductor devices.
