Question
Consider flow of standard air at $1250 \mathrm{ft}^{3} / \mathrm{min}$. Compare the pressure drop per unit length of a round duct with that for rectangular ducts of aspect ratio $1,2,$ and 3. Assume that all ducts are smooth, with cross-sectional areas of $1 \mathrm{ft}^{2}$
Step 1
In this case, $Q = 1250 \, \text{ft}^3/\text{min}$ and $A = 1 \, \text{ft}^2$, so \[V = \frac{Q}{A} = \frac{1250 \, \text{ft}^3/\text{min}}{1 \, \text{ft}^2} = 20.8 \, \text{ft/s}.\] Show more…
Show all steps
Your feedback will help us improve your experience
Chai Santi and 62 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
8.131 Consider flow of standard air at $1250 \mathrm{ft}^{3} / \mathrm{min}$. Compare the pressure drop per unit length of a round duct with that for rectangular ducts of aspect ratio $1,2,$ and 3. Assume that all ducts are smooth, with cross-sectional areas of $1 \mathrm{ft}^{2}$

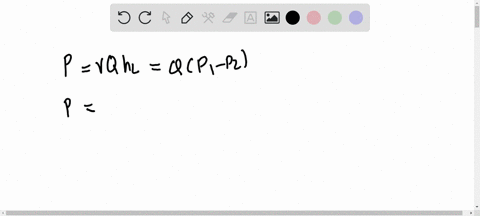

Air at standard conditions flows through a horizontal 1 ft by 1.5 ft rectangular wooden duct at a rate of $5000 \mathrm{ft}^{3} / \mathrm{min}$. Determine the head loss, pressure drop, and power supplied by the fan to overcome the flow resistance in 500 ft of the duct.
Determine the minimum size smooth rectangular duct with an aspect ratio of 3 that will pass $1 \mathrm{m}^{3} / \mathrm{s}$ of $10^{\circ} \mathrm{C}$ air with a head loss of $25 \mathrm{mm}$ of water per $100 \mathrm{m}$ of duct.
