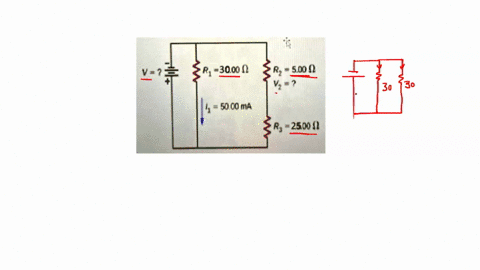

Consider the circuit shown below. (a) What is the terminal voltage of the battery? (b) What is t

step 1 Now we're given for this question a circuit and we want to find the terminal voltage of the batt

Consider the circuit shown below. (a) What is the terminal...

Key Concepts

Terminal Voltage

Terminal voltage refers to the actual voltage measured across the battery’s terminals when it is connected to a circuit. This voltage differs from the battery's ideal electromotive force (emf) because it accounts for the internal resistance of the battery and the voltage drops occurring under load conditions. Understanding terminal voltage is crucial when analyzing circuits since it determines the effective voltage available to drive current through the external components.

Internal Resistance

Internal resistance is the inherent resistance inside a battery or power source that causes a voltage drop as current flows. It plays an important role in electrical circuits by reducing the terminal voltage below the ideal emf. Its impact becomes particularly significant in high-current applications where it can lead to notable power losses and influence the overall performance and efficiency of the circuit.

Ohm's Law

Ohm's Law is a fundamental principle in electrical engineering that relates voltage, current, and resistance. It states that the voltage across a resistor is equal to the product of the current flowing through it and its resistance. This law is essential for analyzing circuits and calculating voltage drops across individual components, such as resistors, within a circuit.

Kirchhoff's Voltage Law

Kirchhoff's Voltage Law (KVL) states that the sum of the electrical potential differences (voltage) around any closed network is zero. This principle is used to analyze circuits by ensuring that all voltage gains and drops around a loop balance out, which is vital when calculating quantities like the terminal voltage of a battery and the voltage drop across specific circuit elements.

Voltage Divider Principle

The voltage divider principle applies to circuits where resistors are connected in series and describes how the total voltage is distributed among them in proportion to their resistances. It is particularly useful for determining the voltage drop across a resistor in a series circuit, as it allows one to calculate the potential difference based on the ratio of the resistor's value to the total series resistance.
