Consider the combination of resistors shown in Figure P18.6....

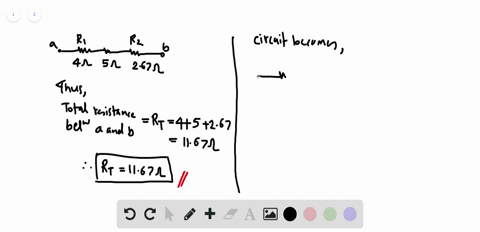

Consider the combination of resistors shown in Figure P18.6. (a) Find the equivalent resistance between point $a$ and $b$. (b) If a voltage of $35 \mathrm{~V}$ is applied between points $a$ and $b$, find the current in each resistor.

Key Concepts

Kirchhoff's Circuit Laws

Kirchhoff’s Laws, including the Voltage Law and the Current Law, are used to analyze complex circuits. The Voltage Law states that the sum of the potential differences around any closed loop in a circuit is zero, while the Current Law indicates that the total current entering a junction equals the total current leaving it. These laws complement Ohm's Law in circuit analysis.

Ohm's Law

Ohm's Law is a fundamental principle in circuit theory that states the current through a resistor is directly proportional to the voltage across it and inversely proportional to its resistance (I = V/R). This law is essential for calculating unknown values in a circuit once one of the variables is determined.

Circuit Analysis Techniques

This refers to the systematic methods used to simplify and solve circuits, such as combining resistors in series and parallel, and applying Ohm's and Kirchhoff's laws. These techniques help determine quantities like equivalent resistance, individual resistor currents, and voltage distributions across the circuit.

Series Resistors

Series resistors are connected end-to-end so that the same current flows through each resistor. The total or equivalent resistance in a series connection is the sum of the individual resistances, a concept that helps in reducing complex circuits into simpler forms.

Equivalent Resistance

This concept involves combining multiple resistors into a single resistor that has the same overall effect in a circuit. By calculating the equivalent resistance, the circuit can be simplified, making analysis easier when determining the current flow or voltage drop across portions of the circuit.

Parallel Resistors

Resistors connected in parallel are arranged so that both ends of each resistor are directly connected. In this configuration, the voltage across each resistor is the same, and the equivalent resistance is found by taking the reciprocal of the sum of the reciprocals of the individual resistances. This concept is crucial for analyzing circuits where current divides among multiple paths.
