Consider the electric field lines in Figure 17-26 a. Where...

Consider the electric field lines in Figure $17-26$

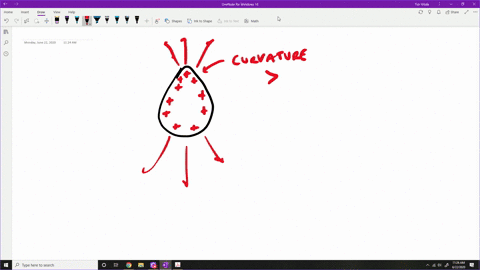

a. Where is charge density the highest? Where is it the lowest?
b. If an opposite charge were brought into the vicinity, where would charge on the pear shaped object "leak off" most readily?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Electric Field Lines

Electric field lines illustrate the direction and magnitude of the electric field. Their density effectively shows how strong the field is in a particular area, with more closely spaced lines representing regions of a stronger field. This concept helps in visualizing how charges are distributed and interacting in space.

Charge Density

Charge density refers to the distribution of electric charge per unit area or volume within a material. In graphical representations, areas where the field lines are densely clustered are associated with higher charge density, while sparsely populated regions indicate lower charge density. This concept is fundamental in understanding how charge arrangement affects the local electric field.

Edge Effects and Field Enhancement

Edge effects describe the phenomenon where electric fields become intensified at points, edges, or protrusions of a charged object, due to the curvature and geometric irregularities. This increased field strength at sharp edges means that if an oppositely charged object is nearby, these regions will be the first to conduct or 'leak' charge. Understanding this concept is crucial for predicting where discharge effects or corona may occur on irregularly shaped conductors.
