Question
Consider the transistor described in Problem 12.3. (a) For a common-base current gain of $\alpha=0.9850$, determine the common-emitter current gain [note: $\beta=\alpha /(1-\alpha)]$.(b) Determine the emitter and base currents corresponding to the collector currents determined in Problem 12.3. ( $c$ ) Repeats parts ( $a$ ) and ( $b$ ) for a common-base current gain of $\alpha=0.9940$.
Step 1
The formula to calculate $\beta$ is given as $\beta=\alpha /(1-\alpha)$. For $\alpha=0.9850$, we have: \[\beta_1 = \frac{0.9850}{1-0.9850} = 65.7\] For $\alpha=0.9940$, we have: \[\beta_2 = \frac{0.9940}{1-0.9940} = 165.7\] Show more…
Show all steps
Your feedback will help us improve your experience
Chai Santi and 71 other educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

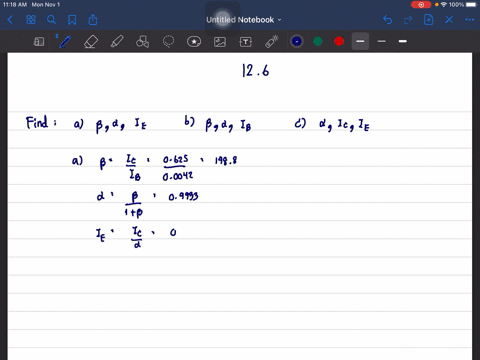

A bipolar transistor is biased in the forward-active region. ( $a$ ) For a base current of $I_{\bar{B}}=4.2 \mu \mathrm{A}$ and a collector current of $I_{C}=0.625 \mathrm{~mA}$, determine $(i) \beta,(i i) \alpha$, and (iii) $I_{E \cdot}(b)$ For a collector current of $I_{C}=1.254 \mathrm{~mA}$ and an emitter current of $I_{E}=1.273 \mathrm{~mA}$, determine (i) $\beta,(i i) \alpha$, and (iii) $I_{B .}(c)$ For a base current of $I_{B}=.065 \mu \mathrm{A}$ and a common-emitter current gain of $\beta=150$, determine (i) $\alpha$, (ii) $I_{C}$, and (iii) $I_{E \text { - }}$
( $a$ ) The following currents are measured in a uniformly doped npn bipolar transistor. $$ \begin{aligned} I_{n E} &=0.50 \mathrm{~mA} & I_{p E} &=3.5 \mu \mathrm{A} \\ I_{n C} &=0.495 \mathrm{~mA} & I_{R} &=5.0 \mu \mathrm{A} \\ I_{O} &=0.50 \mu \mathrm{A} & I_{\mathrm{po} 0} &=0.50 \mu \mathrm{A} \end{aligned} $$ Determine the following current gain parameters: (i) $\gamma,(i i) \alpha_{\bar{T}},(i i i) \delta,(i v) \alpha$, and $(v) \beta .(b)$ If the required value of common-emitter current gain is $\beta=120$, determine new values of $I_{n C}, I_{p E,}$ and $I_{B}$ to meet this specification assuming $\gamma=\alpha_{T}=\delta$
A transistor operating in a common base configuration has forward current gain factor, $\alpha=0.99 .$ If the emitter current changes by $1 \mathrm{~mA}$, then the changes in the base current will be : (a) $100 \mathrm{~mA}$ (b) $0.01 \mathrm{~mA}$ (c) $0.99 \mathrm{~mA}$ (d) $99 \mathrm{~mA}$
