Considere el catión nitrilo, NO2^+. (a) Escriba una o más estructuras de Lewis apropiadas para e

Considere el catión nitrilo, NO2^+. (a) Escriba una o más...

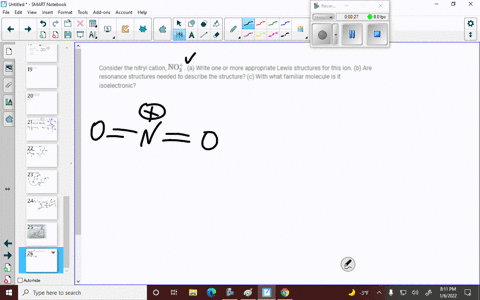

Considere el catión nitrilo, $\mathrm{NO}_2^{+}$. (a) Escriba una o más estructuras de Lewis apropiadas para esta especie. (b) ¿Se requieren estructuras de resonancia para describir la estructura? (c) ¿Con qué especie conocida es isoelectrónico?

Key Concepts

Lewis Structures

Lewis structures are diagrams that illustrate the arrangement of valence electrons among the atoms in a molecule or ion. They are used to depict how atoms bond together and where lone pairs of electrons are located. This method helps in visualizing electron distribution, assessing bonding patterns, and predicting molecular geometry and chemical reactivity.

Formal Charges

Formal charges are calculated values assigned to atoms within a Lewis structure to reflect the difference between the number of valence electrons in a free atom and the number assigned to it in a particular structure. This bookkeeping technique is essential for assessing the most plausible Lewis structure by minimizing charge separation and better matching known oxidation states.

Resonance Structures

Resonance structures are multiple valid Lewis representations for the same molecule or ion. They are used when a single Lewis structure does not fully capture the delocalized nature of electrons within a species. By considering all resonance forms together, one gains a more accurate and comprehensive understanding of the electron distribution and stability of the molecule.

Isoelectronic Species

Isoelectronic species are different atoms, ions, or molecules that share the same total number of electrons and similar electronic configurations. This concept is useful for comparing chemical properties and bonding characteristics across different entities, as similar electron counts can lead to analogous structural and energetic features.

Transcript

0:00 Good day.

00:01 In this question, we have been given the nitral cat iron in o2 plus.

00:06 And what we need to do is draw one or more lower structures for this cat iron.

00:12 And we also need to determine whether or not resonance structures are needed to describe this structure.

00:18 And finally, in the third part, we need to identify a molecule that we are familiar with that is isoelectric with n02 plus.

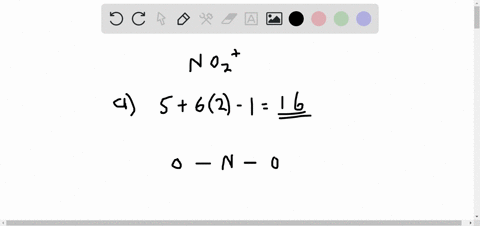

00:27 So to start off to write down the, to draw the lewis structure for no2 plus, we need to calculate the total number of valence electrons.

00:37 So to do that, we have five valence electrons for nitrogen, plus we have six valence electrons for oxygen, multiplied by the two oxygen atoms, and then we subtract one electron that gives us the plus sign, and this will give us a total of 16 electrons.

00:56 Then the next step is to write down the least electronegative atom in the center and t -nitrogen and oxygen, nitrogen is the least electron negative.

01:05 So then we put the oxygen atoms beside the nitrogen.

01:11 Then the following step is to put the bonding electrons and then fill the octates of the outer atoms, which are oxygen atoms in this case.

01:24 So now we have 2, 4, 6, 8, 10, 12, 14, 16 electrons.

01:29 The oxygens have full octates, but nitrogen does not.

01:33 So we'll have to remove some of these electrons on the oxygen atoms to fill the octate of nitrogen.

01:42 So by removing those two, we then form double bonds.

01:46 Now we take note that oxygen has a full octate, that oxygen has a full octate, and the nitrogen also has a full octet.

01:56 And we put the square brackets because this is an iron.

02:01 So the plus...
