Construct a frequency distribution and a frequency polygon...

Construct a frequency distribution and a frequency polygon for the data set using the indicated number of classes. Describe any patterns. Numbers of classes: 6 Data set: Numbers of children of the U.S. presidents $\begin{array}{ccccccccccccccc}0 & 5 & 6 & 0 & 3 & 4 & 0 & 4 & 10 & 15 & 0 & 6 & 2 & 3 & 0 \\ 4 & 5 & 4 & 8 & 7 & 3 & 5 & 3 & 2 & 6 & 3 & 3 & 1 & 2 & \\ 2 & 6 & 1 & 2 & 3 & 2 & 2 & 4 & 4 & 4 & 6 & 1 & 2 & 2 & \end{array}$

Construct a frequency distribution and a frequency polygon for the data set using the indicated number of classes. Describe any patterns.
Numbers of classes: 6 Data set: Numbers of children of the U.S. presidents $\begin{array}{ccccccccccccccc}0 & 5 & 6 & 0 & 3 & 4 & 0 & 4 & 10 & 15 & 0 & 6 & 2 & 3 & 0 \\ 4 & 5 & 4 & 8 & 7 & 3 & 5 & 3 & 2 & 6 & 3 & 3 & 1 & 2 & \\ 2 & 6 & 1 & 2 & 3 & 2 & 2 & 4 & 4 & 4 & 6 & 1 & 2 & 2 & \end{array}$

Key Concepts

Pattern Recognition

Pattern recognition in statistical data involves identifying trends, clusters, gaps, or skewness within a dataset. By analyzing both the frequency distribution and frequency polygon, one can detect underlying patterns that indicate how the data is spread, whether it is symmetric, skewed, or contains outliers.

Frequency Polygon

A frequency polygon is a line graph formed by plotting the frequencies of each class interval at their midpoints and then joining these points with straight lines. This graphical tool provides a clear visual representation of the distribution, facilitating the identification of trends, patterns, and the overall shape of the data.

Data Visualization

Data visualization involves using graphical representations, such as frequency polygons and histograms, to express statistical data visually. This approach helps in quickly identifying patterns, trends, and anomalies in the dataset, making complex data more accessible and interpretable.

Class Intervals

Class intervals are the contiguous, non-overlapping segments into which the data is grouped when constructing a frequency distribution. The choice of a fixed number of classes, such as six in the given problem, helps standardize the grouping, enabling consistent comparison across different parts of the dataset.

Frequency Distribution

A frequency distribution is a tabular summary that displays the number of observations falling within a range of values, known as classes or intervals. It organizes raw data into a structured format, making it easier to understand the overall distribution and variability within the dataset.

Transcript

00:01 In this problem of frequency distribution, you have to construct a frequency distribution table and a frequency polygon for the given data set.

00:19 Here are the number of classes.

00:21 It's given as six.

00:29 And the data number of children of the us presidents.

00:36 So first let's find the class width.

00:45 Class with is equal to range divided by the number of classes.

00:51 So here the maximum value is 15, minimum 0 divided by the number of class 6.

01:01 So if we choose the next convenient value, that could be 3.

01:07 So now we can construct the table.

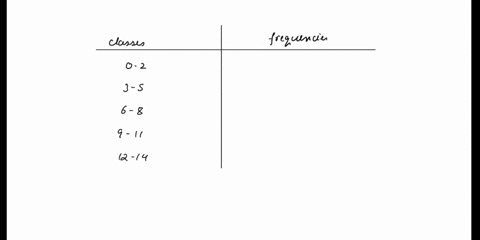

01:39 Class starts with 0.

01:45 And since the class with this 2, the class with this 3, we have to add 1 less than 3.

01:51 To fill out the classes do not overlap then it starts with three to five six to eight nine to eleven twelve to fourteen fifteen to seventeen to seventeen this gives us six classes now we have to calculate the frequency using the given data not for zero to two it is one two three four five five 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 17, 17, 17, 3 to 5, 2, 3, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 15, 16, 17, 17, 17, again, 6 to 8, 2, 6 to 8, 2, 10, 10, 10, 1, one, two, three, four, five, six, seven, nine to twelve, nine to eleven.

03:37 It's just one.

03:40 Twelve to forty, zero gear.

03:43 And fifteen to seventeen is going to be one.

03:47 So if we sum this up, we will get.

04:22 43.

04:26 Now we'll calculate the net point in order.

04:37 So this is 0 .0 .0 .0 .2 by 2.

04:40 Net point is given by lower class limit plus upper class limit divided by 2.

04:50 So here it is 1 .3 plus 5 by 2.

04:55 4, 7, we just, we keep on adding the class with to get the net points of the next class...
