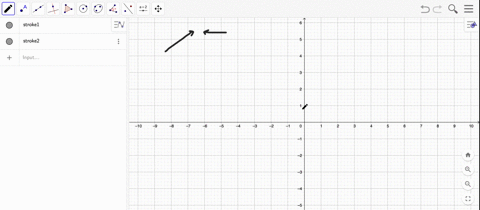

Copy the vectors in the figure and use them to draw the following vectors.
$$\begin{array}{ll}{\text { (a) } a+b} & {\text { (b) } a-b} \\ {\text { (c) } \frac{1}{2} a} & {\text { (d) }-3 b} \\ {\text { (e) } a+2 b} & {\text { (f) } 2 b-a}\end{array}$$

Key Concepts

Graphical Representation of Vectors

This concept involves drawing vectors using arrows in a coordinate system to visually display their magnitude and direction. Graphical representations aid in understanding vector operations like addition, subtraction, and scalar multiplication, and provide a clear illustration of how vectors interact spatially.

Scalar Multiplication

Scalar multiplication involves multiplying a vector by a constant, which scales the vector's magnitude without changing its direction, unless the scalar is negative, in which case the direction is reversed. This operation is crucial in linear algebra as it allows for adjusting the length of vectors to form linear combinations and perform transformations.

Vector Addition

Vector addition involves combining two or more vectors to produce a resultant vector. This is typically done by placing the tail of one vector at the head of the other, and the resultant vector extends from the tail of the first vector to the head of the last. This concept is fundamental for understanding how multiple forces, displacements, or other vector quantities combine in space.

Vector Subtraction

Vector subtraction is similar to addition but involves reversing the direction of the vector being subtracted before adding it to the other vector. This operation is used to determine the difference between vectors, effectively measuring the change or displacement from one vector to another, and it is essential in various applications including physics and engineering.
